APEC 16 mm Orange Circular Cable Armoured PVC/Steel Wire/PVC 100mtr
Loading...
Description

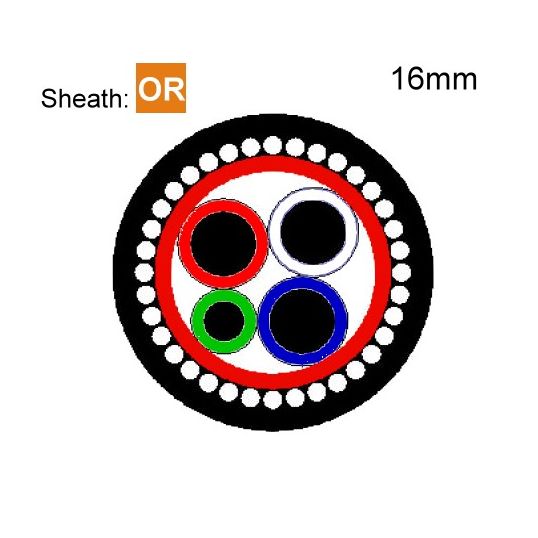

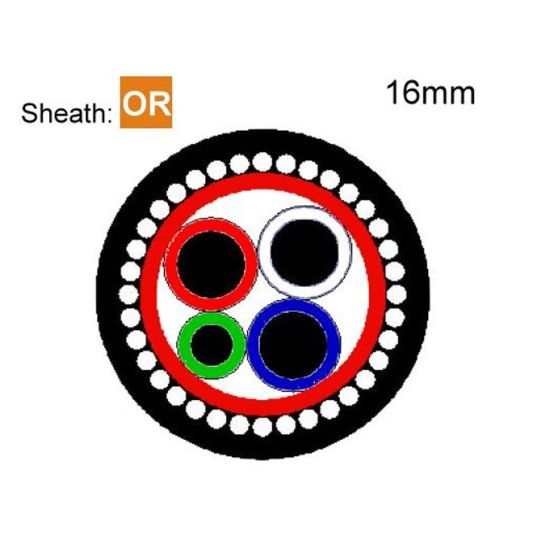

Circular Power Cable, Armoured, 3 Core & Earth, 16 mm, Annealed Copper, 0.6/1 kV, 6 mm Earth Conductor, 23.6 mm Diameter Over Armour, 25.4 mm Overall Diameter, 1 mm Insulation Thickness, 1.8 mm Sheath Thickness, Steel Wire Armour, PVC Insulation, PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
932666300646
|
|---|---|
| SKU |
APEMS016E03
|
| Brand |
APEC
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | MS016E03 |
| Armour Material | Steel Wire |
| Conductor Type | Annealed Copper |
| Conductor Size | 16 mm |
| Core Colours | Red/Blue/White/Green/Yellow |
| Diameter Over Armour | 23.6 mm |
| Earth Conductor Size | 6 mm |
| Insulation Material | PVC |
| Insulation Thickness | 1 mm |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 25.4 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Sheath Thickness | 1.8 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
