APEC Flexible Cable 120mm Copper 0.6/1kV XLP 5V-90 PVC Orange

Description

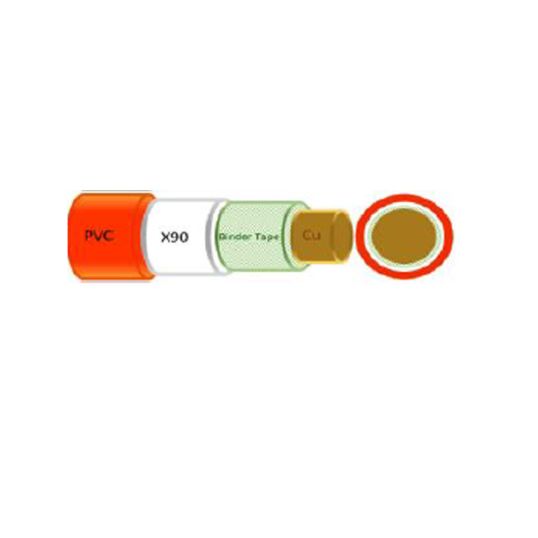

Flexible Cable, 120 mm, Annealed Copper, 0.6-1 kV, 1 Core, 21 mm Overall Diameter, 103 mm During Installation/69 mm After Installation Bend Radius, 1.2 mm Insulation Thickness, 1.5 mm Sheath Thickness, 0.161 Ohm/km Conductor Resistance, 3000 GOhm/m Insulation Resistance, XLPE Insulation, White Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 90 deg C, AS/NZS 5000.1 AS/NZS 3808 AS/NZS 3008 AS/NZS 1660 AS/NZS 1574

Key Specifications

Barcode (EAN-13)	932666302074
SKU	APEFXV120WO
Brand	APEC
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121500
UOM	MTR
Vendor Product	FXV120WO
Bend Radius	103 mm During Installation - 69 mm After Installation
Conductor Resistance	0.161 Ohm/km
Conductor Size	120 mm
Conductor Type	Annealed Copper
Insulation Colour	White
Insulation Material	XLPE
Insulation Thickness	1.2 mm
Insulation Resistance	3000 GOhm/m
Number of Cores	1 Core
Overall Diameter	21 mm
Sheath Colour	Orange
Sheath Thickness	1.5 mm
Sheath Material	5V-90 PVC
Standards	AS/NZS 5000.1 AS/NZS 3808 AS/NZS 3008 AS/NZS 1660 AS/NZS 1574
Temperature	-25 to 90 deg C
Voltage	0.6-1 kV
