APEC Ordinary Duty Flexible Cable 3 Core & Earth 1.5mm 250/440V Annealed Copper PVC/PVC Grey

Description

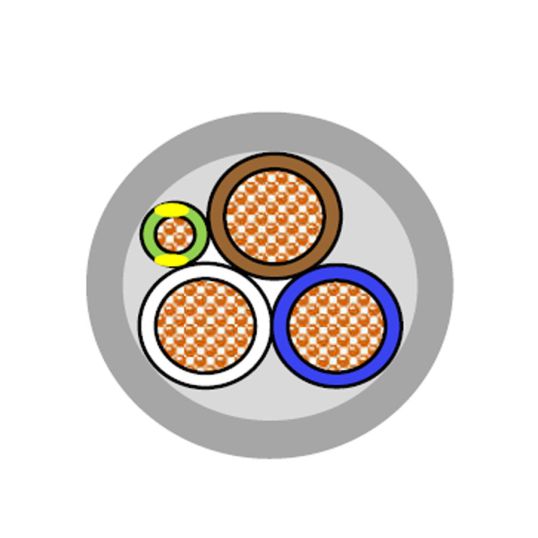

Flexible Cable, 1.5 mm, Annealed Copper, 250-440 Volt, 3 Core + Earth, 9.2 mm Overall Diameter, 0.7 mm Insulation Thickness, 1 mm Sheath Thickness, Brown/Blue/White/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Grey Sheath, 60 deg C, AS/NZS 3191

Key Specifications

Barcode (EAN-13)	932666301081
SKU	APEFRM430025-SY-100
Brand	APEC
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FRM430025-SY-100
Conductor Size	1.5 mm
Conductor Type	Annealed Copper
Core Colours	Brown/Blue/White/Green/Yellow
Insulation Material	V-90 PVC
Insulation Thickness	0.7 mm
Number of Cores	3 Core + Earth
Overall Diameter	9.2 mm
Sheath Colour	Grey
Sheath Material	5V-90 PVC
Sheath Thickness	1 mm
Standards	AS/NZS 3191
Temperature	60 deg C
Voltage	250-440 Volt
