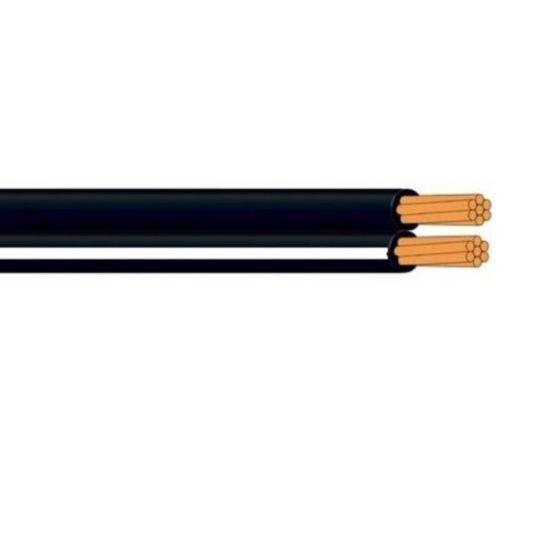

APEC Flexible Wire 2 Core Figure 8 0.75mm 250V Annealed Copper PVC/PVC White/Black

Description

Flexible Cable Figure 8, 0.75 mm, Annealed Copper, 250 Volt, 2 Core, 24/0.2 mm Strands, 2.8 mm x 6 mm Overall Diameter, 0.8 mm Insulation Thickness, V-90 PVC Insulation, V-90 PVC Sheath, White/Black Sheath, 60 deg C, AS/NZS 3191

Key Specifications

Barcode (EAN-13)	932666301067
SKU	APEFFR22402-WHBK-100
Brand	APEC
Product Type	Flexible Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FFR22402-WHBK-100
Conductor Size	0.75 mm
Conductor Type	Annealed Copper
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Number of Cores	2 Core
Overall Diameter	2.8 mm x 6 mm
Sheath Colour	Black/White
Sheath Material	V-90 PVC
Standards	AS/NZS 3191
Temperature	60 deg C
Stranding	24/0.2 mm
Voltage	250 Volt
