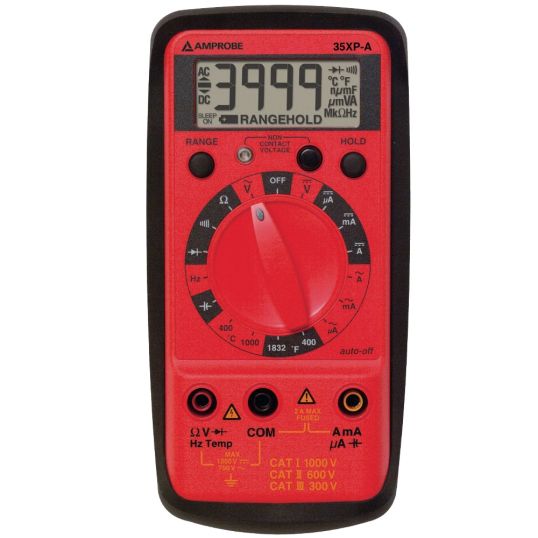

Amprobe XR-A Series Digital Multimeter 600VAC/DC 10A AC/DC 40 MOhm

Description

Digital Multimeter, 400 mV/4 Volt/40 Volt/400 Volt/600 Volt AC/DC, 400 uA/4000 uA/40 mA/400 mA AC/DC, 4 kHz/40 kHz/400 kHz/1 MHz, 400 Ohm/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm, 9 Volt NEDA 1604 Battery, 0 to 50 deg C, LCD Display, 100 uVolt AC Resolution, 4 nF/40 nF/400 nF/4 uF/40 uF/400 uF/4 mF Range, +/-1.5 % + 5 AC, +/-1 % + 1 DC Accuracy, 155mm Height x 72mm Width x 32mm Depth

Key Specifications

Barcode (EAN-13)	095969365437
SKU	AMP35XP-A
Brand	Amprobe
Range Name	XR-A Series

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low cost D mms for all general applications AS61010 compliant to Cat II, 600V Capacitance for motor run/start test 01 uA resolution for flame sensor testing Data Hold freezes display VolTect non-contact voltage detector
Standard Pack Size	1
UNSPSC Class	41113600
UOM	EA
Vendor Product	AMP35XP-A
Dimensions	155 mm Height x 72 mm Width x 32 mm Depth
Current	400 uA-4000 uA-40 mA-400 mA AC/DC
Display Type	LCD
Frequency	4 kHz/40 kHz/400 kHz/1 MHz
Power Supply	9 Volt NEDA 1604
Product Type	simple
Resistance	400 Ohm/4 kOhm/40 kOhm/400 kOhm/4 MOhm/40 MOhm
Temperature	0 to 50 deg C
Voltage	400 mV 4-40-400-600 Volt AC/DC
