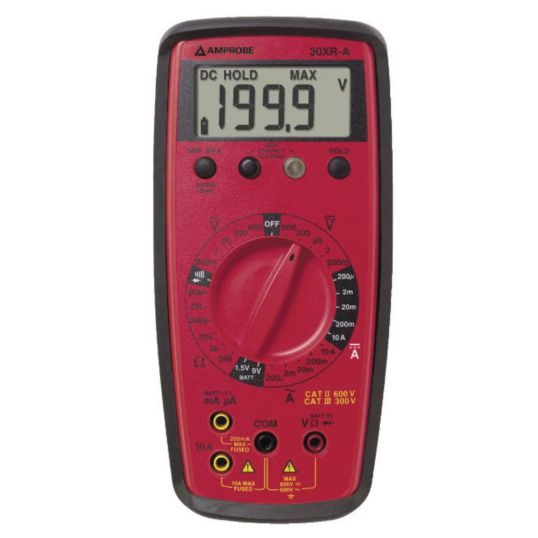

Amprobe XR-A Series Digital Digital Multimeter Auto Ranging 600VAC/DC 10A AC/DC 20 MOhm

chevron-left
loader
Loading...

Description

chevron-down
Digital Digital Multimeter Auto Ranging, 200 mV/2 Volt/20 Volt/200 Volt/600 Volt AC/DC, 200 uA/2 mA/20 mA/200 mA/10 A AC/DC, 200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm, 9 Volt NEDA 1604 Battery, 0 to 45 deg C, LCD Display, 100 uVolt AC/DC Resolution, +/-1.5 % + 4 AC, +/-1 % + 1 DC Accuracy, 196 x 92 x 60mm

Key Specifications

chevron-down
Barcode (EAN-13)
095969365369
SKU
AMP30XR-A
Brand
Amprobe
Range Name
XR-A Series

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Non-contact voltage tester
  • Magne-Grip Holster with magnetic hanging strap
  • Fully safety fused
  • Continuity beeper
  • Min/Max and Data Hold
  • Separate door for easy battery and fuse access
  • CAT III 300 V, CAT II 600 V rated
  • Industrial, Maintenance & Repair, Test & Measurement, Portable Devices
Standard Pack Size 1
UNSPSC Class 41113600
UOM EA
Vendor Product AMP30XR-A
Current 200 uA-2 mA-20 mA-200 mA-10 A AC/DC
Dimensions 196 x 92 x 60 mm
Display Type LCD
Power Supply 9 Volt NEDA 1604
Product Type simple
Resistance 200 Ohm/2 kOhm/20 kOhm/200 kOhm/2 MOhm/20 MOhm
Temperature 0 to 45 deg C
Voltage 200 mV/2-20-200-600 Volt AC/DC
