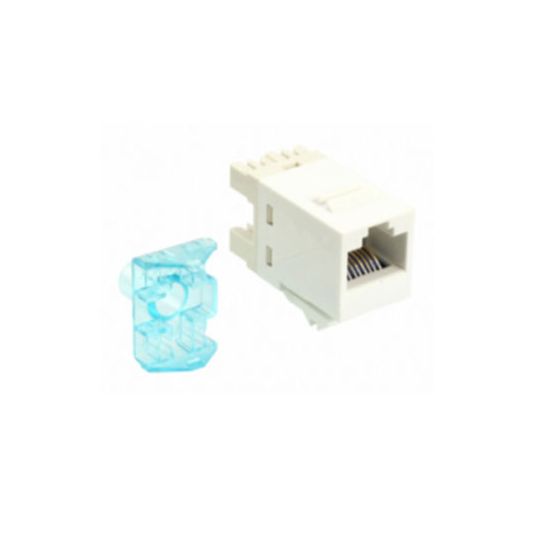

AMP Netconnect SL Series Modular Jack Outlet Mechanism Cat5e UTP RJ45 T568A/B Alpine White

$AMP_Netconnect\AMP_1-1375191-3.jpg$

Description

Modular Jack Outlet Mechanism Cat5e UTP RJ45, 150 Volt AC, Solid, Stranded, Solid: 24-22 AWG, Stranded: 26-24 AWG, RJ45 Connector, Cat5e UTP Cable, 89 N Plug Retention Force, IDC Termination, Wiring Scheme: T568A/B, 1.27 um Contact Plating Thickness, 1.6mm Panel Thickness, Flammability: UL 94 V-0, Polycarbonate Housing, Beryllium Copper Contact Base, Gold Contact Plating, Alpine White,-40 to 70 deg C, 16.26mm Height, 14.48mm Width, 30.48mm Depth

Key Specifications

SKU	AMP1-1375191-3
Brand	AMP Netconnect

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	25
UNSPSC Class	43223300
UOM	EA
Vendor Product	1-1375191-3
Cable Type	Cat5e UTP
Colour	Alpine White
Conductor Size	Solid: 24-22 AWG/Stranded: 26-24 AWG
Connector	RJ45
Contact Base Material	Beryllium Copper
Contact Plating Material	Gold
Depth	30.48mm
Flammability	UL 94 V-0
Height	16.26mm
Housing Material	Polycarbonate
Temperature	-40 to 70 deg C
Termination Type	IDC
Voltage	150 Volt
Width	14.48mm
Wiring Scheme	T568A/B
