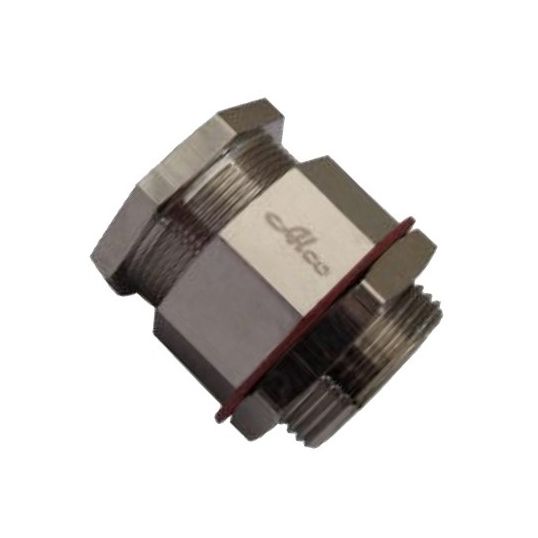

Alco Metal Cable Gland Unarmoured Weatherproof General Purpose M8 65-76mm Nickel Plated Brass IP66/68

Description

Cable Gland Metal Unarmoured Weatherproof, M8, 19 mm Thread Length, 1.5 mm, 65 mm Min. Sheath OD, 76 mm Max. Sheath OD, IP66/68, Brass Body, Thermoplastic Elastomer Seal, Nickel Plated, -20 to 80 deg C

Key Specifications

Barcode (EAN-13)	9328587020534
SKU	ALCUW82
Brand	Alco
Product Type	Cable Glands Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Provides seal on cable sheath Degree of protection against ingress of water IP66/68 Compliance with AS 1939-1990 Locknut supplied as standard Material: Brass, nickel plated
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCUW82
Finish	Nickel Plated
IP Rating	IP66/68
Body Material	Brass
Max. Sheath OD	76 mm
Min. Sheath OD	65 mm
Temperature	-20 to 80 deg C
Thread Length	19 mm
Seal Material	Thermoplastic Elastomer
Thread Pitch	1.5 mm
Thread Size	M8
