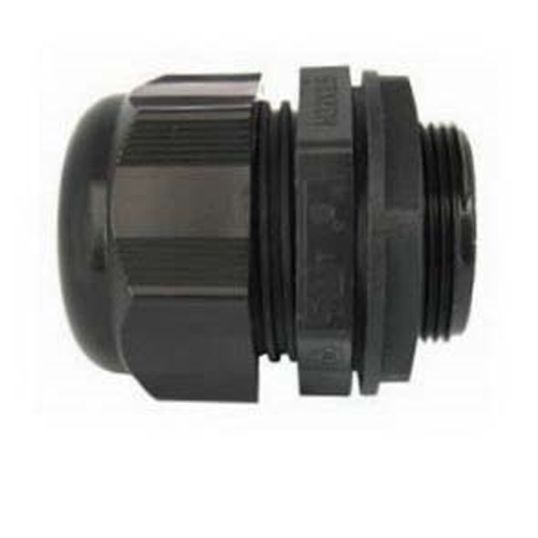

Alco Cable Gland Unarmoured Weatherproof M20 1.5-2.5mm Polyamide

$Alco\Alco_MG20-TPS-B.jpg$

Description

Cable Gland Metal Unarmoured Weatherproof, M20, 15 mm Thread Length, 10 mm Min. Sheath OD, 14 mm Max. Sheath OD, For Use With 1.5-2.5 mm Unarmoured Cable, 27 mm Width Across Flats, IP68, Polyamide Body, Neoprene Seal, -30 to 80 deg C

Key Specifications

Barcode (EAN-13)	9328587016964
SKU	ALCMG20-TPS-B
Brand	Alco
Product Type	Cable Glands Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For indoor and outdoor use Provides seal on cable sheath UV protected Approvals: IP66 - 68 (5Bar) Material: Polyamide Seal: Chloroprene
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCMG20-TPS-B
IP Rating	IP68
For Use With	1.5-2.5 mm Unarmoured Cable
Body Material	Polyamide
Max. Sheath OD	14 mm
Min. Sheath OD	10 mm
Seal Material	Neoprene
Temperature	-30 to 80 deg C
Thread Length	15 mm
Thread Size	M20
Width Across Flats	27 mm
