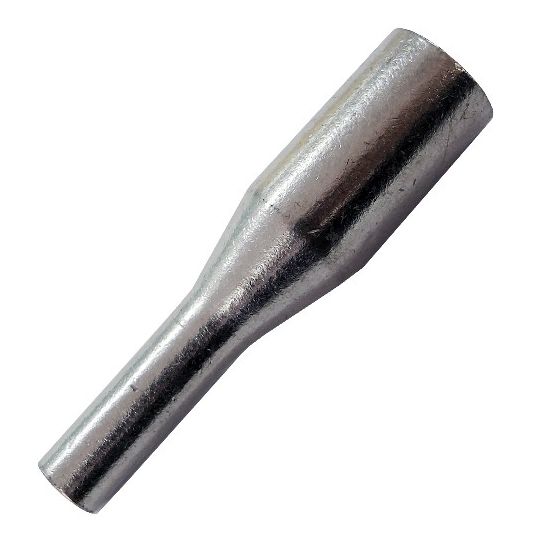

Alco Crimp Link Reducing Copper 25mm 16mm

Description

Crimp Link Reducing, From Conductor Size: 25 mm, 16 mm Conductor, From Inside Diameter: 7.5 mm, 5.5 mm Inside Diameter, 50 mm Overall Length, Annealed Copper Body, Annealed Copper, 55 to 150 deg C

Key Specifications

Barcode (EAN-13)	9328587023290
SKU	ALCLKR25-16
Brand	Alco
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	For jointing of differing CSA conductors Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6) Electro-tin plated for corrosion resistance Chamfered ends for ease of entry of stranded conductors Suitable for use with standard 6 ton, 12 ton and indent and hex crimp tools
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCLKR25-16
Body Material	Annealed Copper
Conductive Material	Annealed Copper
From Conductor Size	25 mm
From Inside Diameter	7.5 mm
Overall Length	50 mm
Temperature	55 to 150 deg C
To Conductor Size	16 mm
To Inside Diameter	5.5 mm
