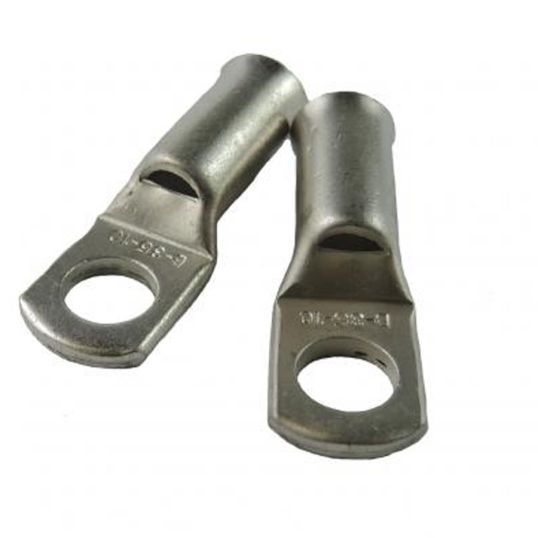

Alco Terminal Lug Bell Mouth Non-insulated with Inspection Hole Copper 300mm M10 Stud 107mm OAL

Description

Terminal Lug Bell Mouth Non-insulated Copper, 300 mm Conductor, M10 Stud, 47 mm Barrel Length, Palm Size: 45 mm Width, 107mm Overall Length, Copper Body, Tin Electroplated, -55 to 155 deg C, 23.8mm Inside Diameter, 31.9mm Outside Diameter, 45mm Lug Length

Key Specifications

Barcode (EAN-13)	9314572021334
SKU	ALCLBM300M10/3
Brand	Alco
Product Type	Lugs Bell Mouth

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Non-insulated electro grade copper crimp lugs suitable for stranded to fine-stranded copper cable Electro tinned finish for high conductivity Includes inspection hole Conform to IS 191 (part V GR.ETP) specifications
Standard Pack Size	3
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCLBM300M10/3
Barrel Length	47 mm
Body Material	Copper
Conductor Size	300 mm
Finish	Tin Electroplated
Inside Diameter	23.8 mm
Lug Length	45 mm
Outside Diameter	31.9 mm
Overall Length	107 mm
Palm Size	45 mm
Stud Size	M10 Stud
Temperature	-55 to 155 deg C
