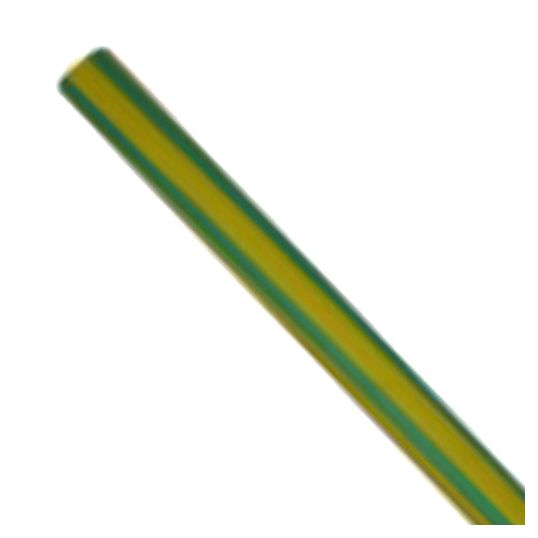

Alco HSTNW Heatshrink Tubing Thin Wall Plain Unlined 41.5-20mm 1.2M Yellow/Green

Description

Heatshrink Tubing Thin Wall Plain Unlined, Shrink Diameter From: 41.5 mm, Shrink Diameter To: 20 mm, 50% Shrink Ratio, Plain Unlined Lining Type, Thin Wall Type, 1 mm Wall Thickness Recovered, 580% Elongation, 110 deg C Shrink Temperature, 15.5 Mpa Tensile Strength, ?15 kV/mm Dielectric Strength, UL/VW-1 Flammability Rating, Ethylene Vinyl Acetate, Green/Yellow, -55 to 125 deg C, 1.2 mtr Length

Key Specifications

Barcode (EAN-13)	9328587007160
SKU	ALCHSTNW40/20YG
Brand	Alco
Range Name	Type HSTNW
Product Type	Heatshrink Tubing

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Heatshrink can be used for heavy duty and general purpose Low shrink temperature and flame retardant Flexible and UV resistant
Standard Pack Size	1
UNSPSC Class	39121700
UOM	EA
Vendor Product	HSTNW40/20YG
Colour	Green/Yellow
Elongation	580%
Dielectric Strength	?15 kV/mm
Lining Type	Plain Unlined
Flammability Rating	UL/VW-1
Material	Ethylene Vinyl Acetate
Shrink Diameter From	41.5 mm
Shrink Diameter To	20 mm
Tensile Strength	15.5 MPa
Shrink Temperature	110 Deg C
Temperature	-55 to 125 Deg C
Shrink Ratio	50%
Wall Thickness Recovered	1 mm
Wall Type	Thin
