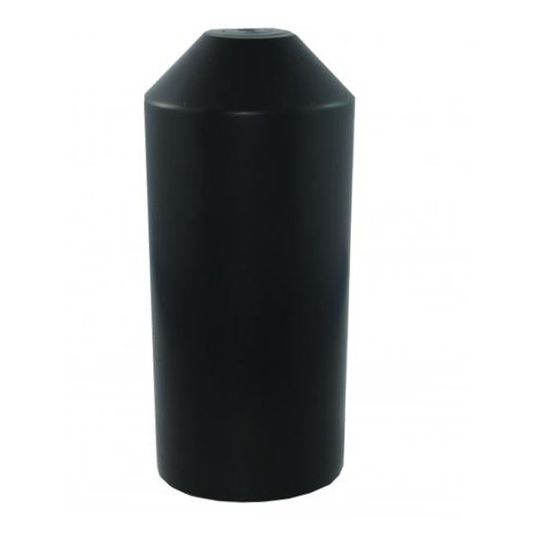

Alco Heatshrink End Cap Adhesive Lined 120-57mm Black

Description

Heatshrink End Cap Adhesive Lined, Shrink Diameter From: 120 mm, Shrink Diameter To: 57 mm, Adhesive Lined Lining, ?3.5 Wall Thickness Recovered, Elongation: ?300% Break, ?16.5 (?230% Break After Thermal Aging, Shrink Temperature: 100 deg C, Tensile Strength: ?13 MPa, Dielectric Strength: ?20 kV/mm, Cross-Linked Polyolefin, Black, -55 to 100 deg C, ?120/?57 mm Supplied/Recovery Length

Key Specifications

Barcode (EAN-13)	9314572019973
SKU	ALCHSEC120/57
Brand	Alco
Product Type	Heatshrink Caps & Gloves

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Seals cable ends during installation or storage Made from heat shrinkable cross-linked polyolefin Hot melt glue lined which bonds cap to the cable jacket Excellent UV, chemical and corrosion resistance Quick reliable seal
Standard Pack Size	1
UNSPSC Class	39121700
UOM	EA
Vendor Product	HSEC120/57
Colour	Black
Elongation	?300% Break
Dielectric Strength	?20 kV/mm
Lining Type	Adhesive Lined
Shrink Diameter From	120 mm
Shrink Diameter To	57 mm
Tensile Strength	?13 MPa
Shrink Temperature	100 deg C
Temperature	-55 to 100 deg C
Wall Thickness Recovered	?3.5
