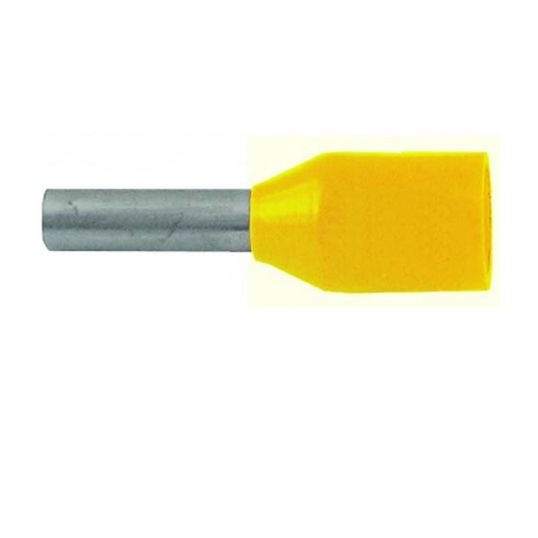

Alco Bootlace Ferrule Insulated Polyamide Yellow 150mmx58mm OAL 3/Pack

$Alco\Alco_BLY.jpg$

Description

Insulated Bootlace Ferrule, 150 mm, 1 Conductors, 600 Volt, 32 mm Pin Length, 19.5 mm Pin Diameter, 23 mm Collar Inside Diameter, WATKSBLC-150, 58 mm Overall Length, Copper Sleeve, Polyamide Insulation, Yellow Insulation, Copper Contact, 105 deg C, 3 Pack

Key Specifications

Barcode (EAN-13)	9314572017283
SKU	ALCBLY150/3
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pre-insulated bootlace terminals Provide precise terminations to multi-stranded cable Reduces possibility of short-circuiting and ensures no strands stray Colour-coded polyamide insulation for easy identification 600V max Bulk packs also available
Standard Pack Size	1
UNSPSC Class	39121400
UOM	PA
Vendor Product	ALCBLY150/3
Pack Size	3 Pack
Conductor Size	150 mm
Crimping Die	WATKSBLC-150
Overall Length	58 mm
Temperature	105 deg C
Sleeve Material	Copper
Insulation Colour	Yellow
Insulation Material	Polyamide
Number of Conductors	1
Contact Material	Copper
Pin Length	32 mm
Collar Inside Diameter	23 mm
Pin Diameter	19.5 mm
Voltage Rating	600 Volt
