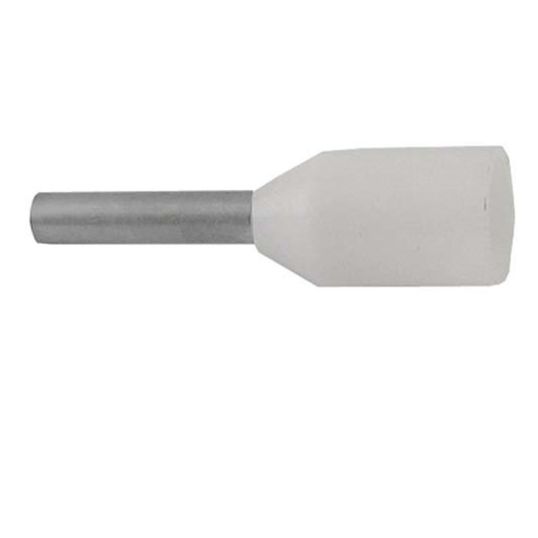

Alco Bootlace Ferrule Insulated Polyamide White 0.5mmx12mm OAL 50/Pack

$Alco\Alco_BLW.jpg$

Description

Bootlace Ferrule Insulated, 0.5 mm Conductor, 12 mm Overall Length, Collar Inside Diameter: 3.3 mm, Pin Diameter: 1.3 mm, 8 mm Pin Length, 600 Volt, Crimping Die: WATK007, WATBLC-DL10, WATKSBLC, WATBLC-TC6Q, WATBLC-TC8, Polyamide Insulation, White Insulation, 105 deg C, 50/Pack

Key Specifications

Barcode (EAN-13)	9328587014977
SKU	ALCBLW/50
Brand	Alco
Product Type	Bootlace Ferrules

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pre-insulated bootlace terminals Provide precise terminations to multi-stranded cable Reduces possibility of short-circuiting and ensures no strands stray Colour-coded polyamide insulation for easy identification Halogen-free
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	ALCBLW/50
Collar Inside Diameter	3.3 mm
Crimping Die	WATK007 / WATBLC-DL10 / WATKSBLC / WATBLC-TC6Q / WATBLC-TC8
Conductor Size	0.5 mm
Insulation Material	Polyamide
Insulation Colour	White
Pin Diameter	1.3 mm
Pin Length	8 mm
Pack Size	50 Pack
Overall Length	12 mm
Temperature	105 deg C
Voltage Rating	600 Volt
