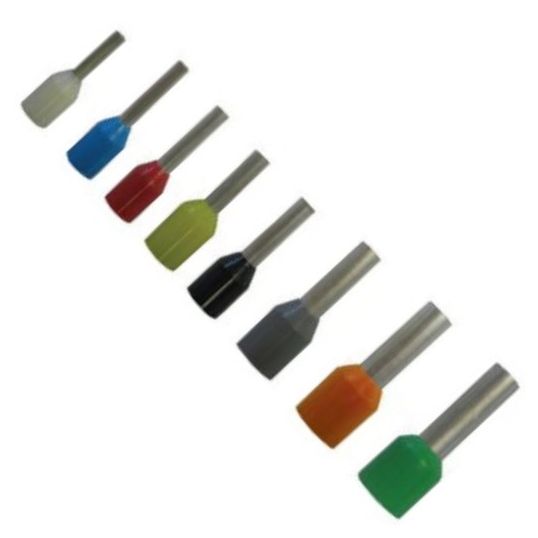

Alco Bootlace Ferrule Insulated 16mm 5.8x12mm Pin 24mm OAL Ivory

$Alco\Alco_Bootlace_Ferrules.jpg$

Description

Insulated Bootlace Ferrule, 16 mm, 1 Conductors, 600 Volt, 12 mm Pin Length, 5.8 mm Pin Diameter, 8.8 mm Collar Inside Diameter, WATBLC-DL16 WATKSBLC616 WATBLC-TC8, 24 mm Overall Length, Copper Sleeve, Polyamide Insulation, Ivory Insulation, Copper Contact, Tin Plated, 105 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9328587012218
SKU	ALCBLI/50
Brand	Alco

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Pre-insulated bootlace terminals Provide precise terminations to multi-stranded cable Reduces possibility of short-circuiting and ensures no strands stray Colour-coded polyamide insulation for easy identification 600V max Bulk packs also available
Standard Pack Size	1
UNSPSC Class	39121400
UOM	PA
Vendor Product	ALCBLI/50
Collar Inside Diameter	8.8 mm
Contact Material	Copper
Crimping Die	WATBLC-DL16 WATKSBLC616 WATBLC-TC8
Conductor Size	16 mm
Finish	Tin Plated
Insulation Material	Polyamide
Insulation Colour	Ivory
Number of Conductors	1
Pin Diameter	5.8 mm
Pin Length	12 mm
Pack Size	50 Pack
Overall Length	24 mm
Sleeve Material	Copper
Temperature	105 deg C
Voltage Rating	600 Volt
