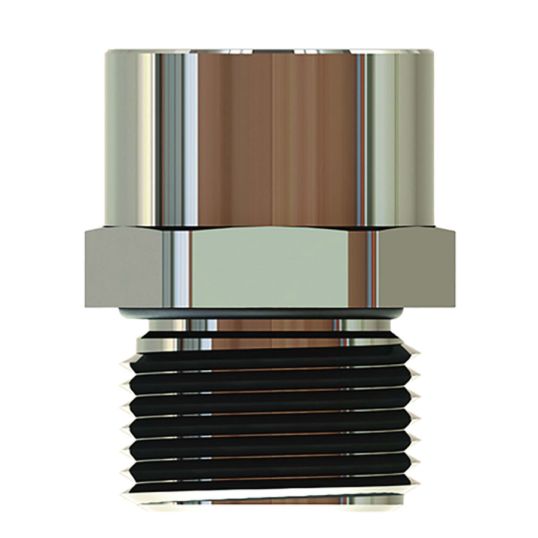

Alco Hazardous Area Brass Enlarger Nickel Plated M20 Male to M32 Female 34mm OAL
Loading...
Description
Hazardous Area Brass Enlarger, Gland Size M20 Male to M32 Female, 15 mm Thread Length, Hazardous Area Rating: Ex d IIC Gb, Ex e IIC Gb, Ex t IIIC Db, IP 66/68, 36 mm Width Across Flats, 39.5 mm Width Across Corners, 5.5 N/m, IP66/68, Neoprene Seal, Brass Body, Nickel Plated, -40 to 100 deg C, 34 mm Overall Length
Key Specifications
| Barcode (EAN-13) |
9314572026179
|
|---|---|
| SKU |
ALCBIMBZBM20M32
|
| Brand |
Alco
|
| Product Type |
Hazardous Area Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | ALCBIMBZBM20M32 |
| Cable Gland Size | M20 Male to M32 Female |
| Finish | Nickel Plated |
| IP Rating | IP66/68 |
| Hazardous Area Rating | Ex d IIC Gb/Ex e IIC Gb/Ex t IIIC Db/IP 66/68 |
| Overall Length | 34 mm |
| Temperature | -40 to 100 deg C |
| Thread Length | 15 mm |
| Width Across Corners | 39.5 mm |
| Width Across Flats | 36 mm |
| Torque Rating | 5.5 Nm |
