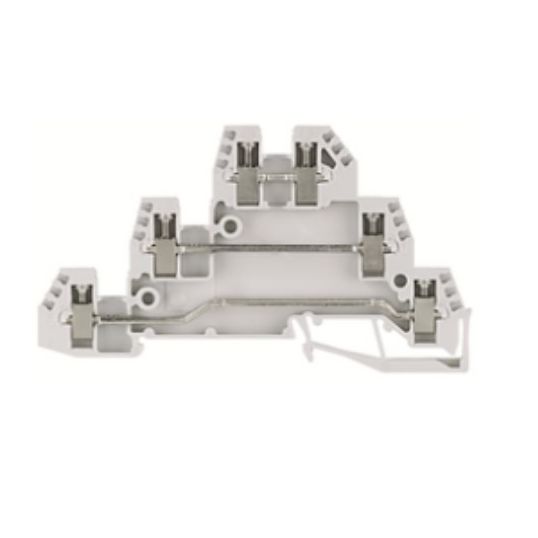

Allen-Bradley Rail Terminal Block Screwed 3 Wire 2.5mm Grey Polyamide 66

Description

Rail Terminal Block, Screwed, 250 Volt, 24 Amp, 2.5mm Conductor, 3 Conductors, Wire Strip Length: 8 mm, Tightening Torque: 0.5 N/m, Wiring Format: 3 Conductor Through, Side Wire Entry, Screw Terminal, DIN Rail Mount, Conductor Material: Copper Alloy, Insulation Material: Polyamide 66, Grey, Tin Plated Finish, -40 to 90 deg C Insulation, Flammability: V0, Height: 89.9 mm, 44.1 mm Width, 5.1 mm Depth

Key Specifications

Barcode (EAN-13)	10662468087602
SKU	ALB1492-WTF3
Brand	Allen-Bradley
Product Type	Rail Terminal Blocks

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Tin plated terminals and steel screws for corrosion resistance High copper content copper alloy for excellent conductivity Four-sided wire funnel guides for easy wire insertion Finger-safe housings to prevent accidental contact with live circuits International approvals for worldwide use Din rail mountable, allowing terminal blocks to be placed on the same channel as contactors, starters, relays and other DIN rail-mounted control devices Self-extinguishing, polyamide 6.6 housing material with UL 94-V0 flammability rating
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	1492WTF3
Colour	Grey
Conductor Material	Copper Alloy
Conductor Size	2.5mm
Current Rating	24 Amp
Depth	5.1 mm
Height	89.9 mm
Flammability	V0
Insulation Material	Polyamide 66
Mounting Method	DIN Rail
Number of Conductors	3
Terminal Type	Screw
Tightening Torque	0.5 Nm
Voltage Rating	250 Volt
Width	44.1 mm
Wire Entry Orientation	Side
Wire Strip Length	8 mm
Wiring Format	3 Conductor Through
