Aflex 1 mm Grey Circular Control Cable Unarmoured PVC/PVC 1mtr
Loading...
Description

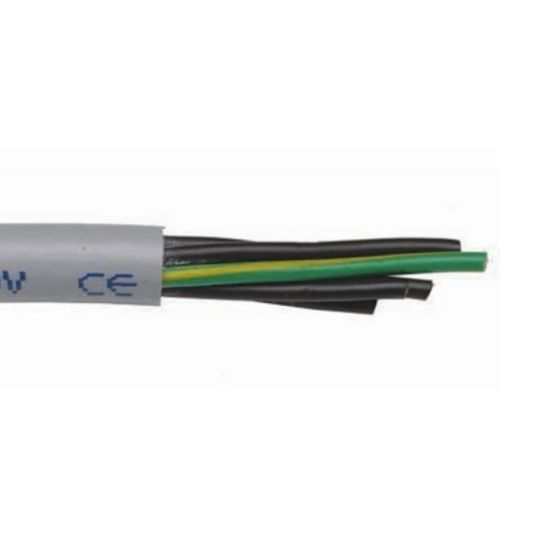

Circular Control Cable, Unarmoured, Flexible, 24 Core & Earth, 1 mm, Stranded Annealed Copper, 0.3/0.5 kV, 32/0.2 mm Strands, 15.8 mm Overall Diameter, V-75 PVC Insulation, PVC Sheath, Black with White Numbered Green/Yellow Cores, Grey Sheath, 75 deg C, AS/NZS 1125, AS/NZS 3808, IEC 60332-1
Key Specifications
| SKU |
AFLCTP25/1.0G
|
|---|---|
| Brand |
Aflex
|
| Product Type |
Circular Control Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | CTP25/1.0G |
| Conductor Size | 1 mm |
| Conductor Type | Stranded Annealed Copper |
| Core Colours | Green/Yellow/Black/White Numerals |
| Insulation Material | PVC |
| Number of Cores | 24 Core + Earth |
| Overall Diameter | 15.8 mm |
| Sheath Colour | Grey |
| Standards | AS/NZS 1125 AS/NZS 3808 IEC 60332-1 |
| Sheath Material | PVC |
| Stranding | 32/0.2 mm |
| Temperature | 75 deg C |
| Voltage | 0.3-0.5 kV |
