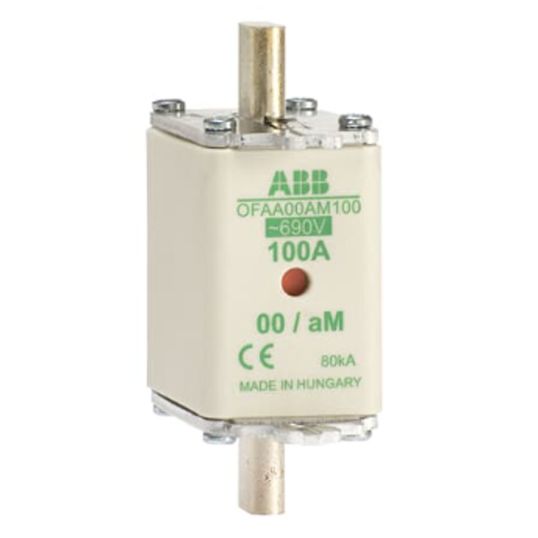

ABB Fuse Link HRC DIN NH 100A 690VAC 80kA aM DIN 00
Loading...
Description
The aM fuse links give economical and reliable protection. ABB fuse links for demanding industrial environments are available to be used in the protection of general as well as motor applications.
Key Specifications
| SKU |
ABBOFAA00AM100
|
|---|---|
| Brand |
ABB
|
| Product Type |
Fuse Links HRC DIN
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121600 |
| UOM | EA |
| Vendor Product | OFAA00AM100 |
| Interrupt Capacity | 80 kA |
| Current | 100 Amp |
| Dimensions | 79 mm Height x 30 mm Width x 60 mm Depth |
| Standard Reference | DIN Size 00 |
| Utilisation Category | Class aM |
| Voltage | 690 Volt AC |
