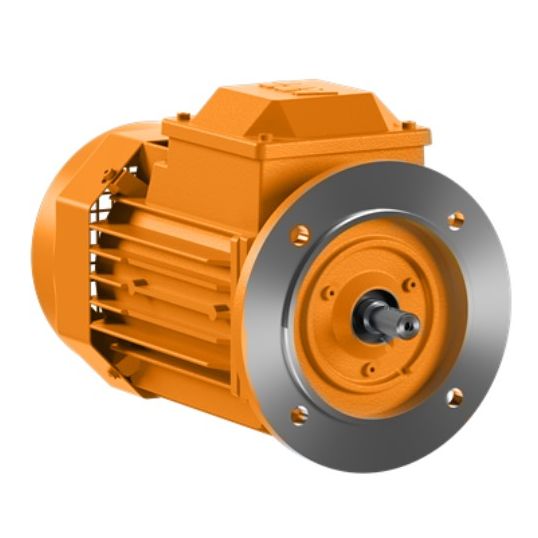

ABB Electric Motor Squirrel Cage Induction 4P 0.25kW 3Ph 460Y/230D/400YV 71A Frame Flange Mount

$ABB\ABB_Motor_3GAA072311-BSE.jpg$

Description

Electric Motor Squirrel Cage Induction, 460 Y/230 D/400 Volt, 0.76 Y/1.31 D/0.7 Amp, 0.25 kW, 50/60 Hz, 3 Phase, 1743 Y/1430 D/1430 rpm, 4 Pole, IP55, Frame: 71A, Duty Cycle: S1, Ball Bearing, Torque: 1.39 Y/1.67 D/1.67 Y N/m, Flange Mount, Insulation Class: ICLF, 40 deg C, Aluminium, Munsell Blue, 130 mm Diameter, Please Note: Large Flange

Key Specifications

SKU	ABB3GAA072311-BSE
Brand	ABB
Range Name	M3AA
Product Type	Motors SCIM

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	ABB has designed a motor that is multi-labeled and certified for use virtually anywhere The motors are harmonized to IEC-CENELEC power and frame size standards Efficiency must meet NEMA minimum efficiency requirements Outputs defined, no derating allowed
Standard Pack Size	1
UNSPSC Class	26101100
UOM	EA
Vendor Product	3GAA072311-BSE
Colour	Munsell Blue
IP Rating	IP55
Voltage	460Y-230D-400Y Volt
Material	Aluminium
Number Of Poles	4 Pole
Please Note	Large Flange
Diameter	130 mm
Current	0.76 Y/1.31 D/0.7 Y A
Frequency	50/60 Hz
Temperature	40 deg C
Bearing Type	Ball
Insulation Class	ICLF
Frame	Size 71A
Speed	1743 Y/1430 D/1430 Y rpm
Torque Rating	1.39 Y/1.67 D/1.67 Y Nm
Horsepower	0.25 kW
Phase	3 Phase
Mounting Method	Flange
