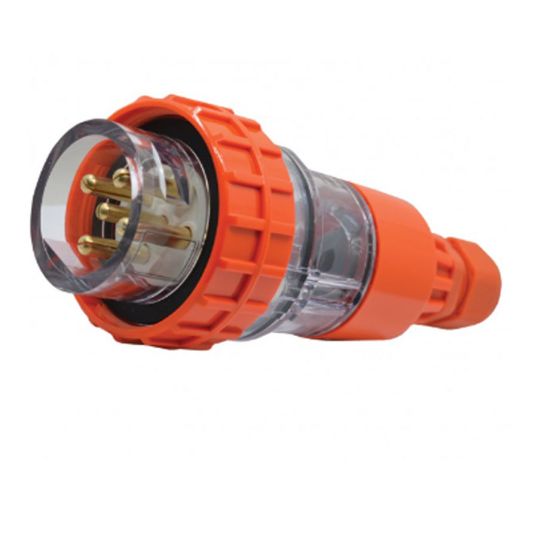

GSME Trader Buffalo Plug 20 Amp 500 Volt 5 Pin IP66
Loading...
Description
Plug Straight, 500 Volt, 20 Amp AC1, 3 Phase Phase, 5 Pin Round, 4.1 mm Diameter Terminal Capacity, M25 x 1.5 mm Cable Gland Size, 12-18 sq-mm Cable Nominal Diameter, IP66, 192 mm Height, 79.8 mm Diameter
Key Specifications
| Barcode (EAN-13) |
9349703031067
|
|---|---|
| SKU |
GSMBUP520
|
| Brand |
GSME Trader
|
| Range Name |
Buffalo
|
| Product Type |
Plugs Straight
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | BUP520 |
| Cable Nominal Diameter | 12-18 sq-mm |
| Cable Gland Size | M25 x 1.5 mm |
| Height | 192 mm |
| IP Rating | IP66 |
| Pin Configuration | 5 Pin Round |
| Phase | 3 Phase |
| Please Note | 79.8 mm Diameter |
| Terminal Capacity | 4.1 mm Diameter |
| Voltage | 500 Volt |
