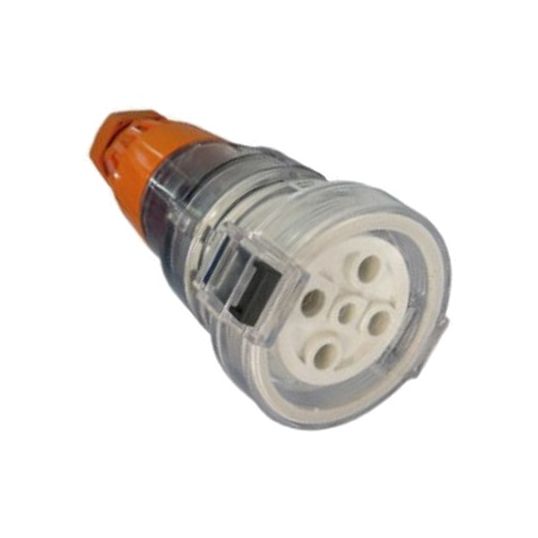

IPD Extension Socket Appliance Connector Weatherproof 3Ph 32A 5 Pin Round Orange IP66
Loading...
Description
Appliance Extension Socket Weatherproof, 250 Volt AC/DC, 32 Amp, 3 Phase Phase, 5 Pin Round, Screw Connection, 16 sq-mm Cable Entry, M20 Cable Gland Size, 7-16 mm Cable Nominal Diameter, IP66, Polycarbonate, Orange, 210 mm Depth
Key Specifications
| Barcode (EAN-13) |
9322017196295
|
|---|---|
| SKU |
IPDW66ES532
|
| Brand |
IPD
|
| Range Name |
W66
|
| Product Type |
Extension Sockets
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 36 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | W66ES532 |
| Cable Nominal Diameter | 7-16 mm |
| Cable Gland Size | M20 |
| Cable Entry | 16 sq-mm |
| Colour | Orange |
| Connection Type | Screw |
| Current | 32 Amp |
| Depth | 210 mm |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Pin Configuration | 5 Pin Round |
| Phase | 3 Phase |
