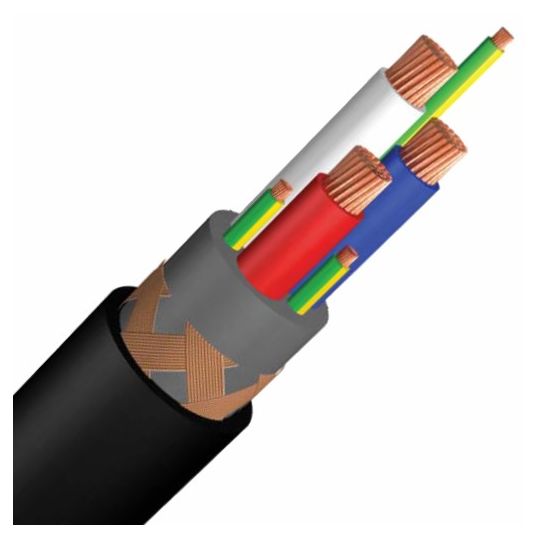

WWC Conflex Series 2 Flexible: Cable VSD Screened 3 Core & Earth 4 mm 0.6/1kV XLPE Plain Copper Braid/TPE Black
Loading...
Description
Flexible: Cable, VSD Screened, 3 Core & Earth, 4 mm, Class 5 Stranded Bare Copper, 0.6/1 kV, 4.1 mm Core Diameter, 2.5 mm Earth Conductor, 10.8 mm Bedding Diameter, 13.9 mm Overall Diameter, Plain Copper Braid Screen, XLPE Insulation, TPE Sheath, Black Sheath, -40 to 90 deg C, AS/NZS 5000.1
Key Specifications
| SKU |
WWC9404XT1E
|
|---|---|
| Brand |
WWC
|
| Range Name |
Conflex
|
| Product Type |
VSD Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 9404XT1E |
| Bedding Diameter | 10.8 mm |
| Conductor Size | 4 mm |
| Conductor Type | Class 5 Stranded Copper |
| Core Diameter | 4.1 mm |
| Earth Conductor Size | 2.5 mm |
| Insulation Material | XLPE |
| Number of Cores | 3 Core + Earth |
| Overall Diameter | 13.9 mm |
| Screen Material | Plain Copper Braid |
| Sheath Colour | Black |
| Sheath Material | TPE |
| Standards | AS/NZS 5000.1 |
| Temperature | -40 to 90 deg C |
| Voltage | 0.6-1 kV |
