WWC Data Cable 4 Core Overall Screened 7/0.2mm 0.3kV PVC/AL/PVC Mist Grey
Loading...
Description

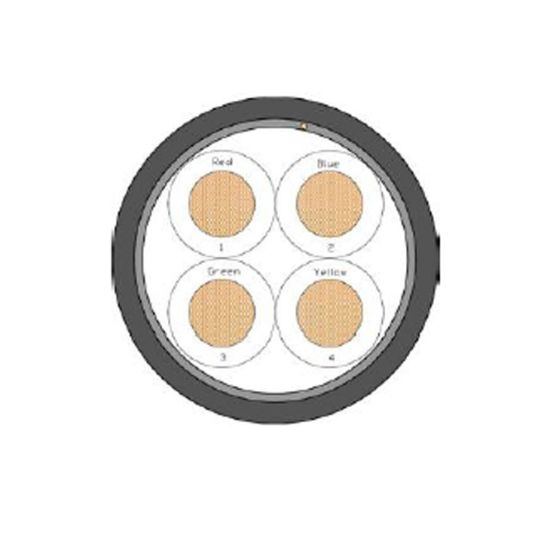

Data Cable, 4 Core, Overall Screened, Class 2 Tinned Annealed Copper, 0.3 kV, 7/0.2 mm Strands, 4.3 mm Overall Diameter, 21.5 mm Bend Radius, Conductor Resistance: 8.9 Ohm/100m, 100% Screen Coverage, Aluminium/Polyester Tape, PVC Insulation, PVC Sheath, Mist Grey Sheath, -25 to 75 deg C
Key Specifications
| SKU |
WWC4204
|
|---|---|
| Brand |
WWC
|
| Product Type |
Data Cable
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 4204 |
| Bend Radius | 21.5 mm |
| Conductor Resistance | 8.9 Ohm/100m |
| Conductor Type | Class 2 Tinned Annealed Copper |
| Insulation Material | PVC |
| Number of Cores | 4 Core |
| Overall Diameter | 4.3 mm |
| Screen Coverage | 100% |
| Screen Format | Overall Screened |
| Screen Material | Aluminium/Polyester Tape |
| Sheath Colour | Grey |
| Sheath Material | PVC |
| Temperature | -25 to 75 deg C |
| Stranding | 7/0.2 mm |
| Voltage | 0.3 kV |
