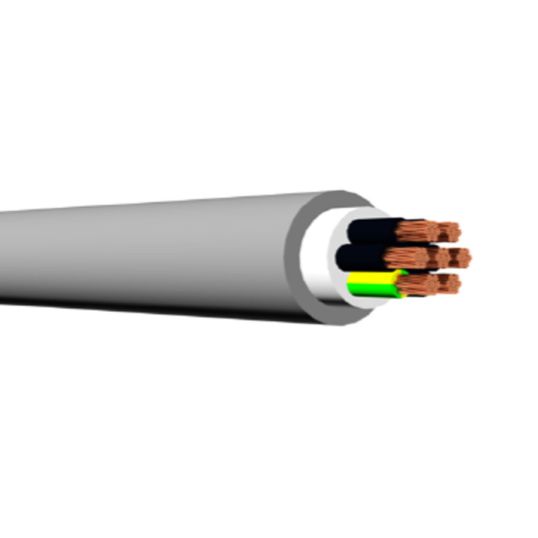

WWC Conflex Flexible Control Cable Unscreened 35 Core & Earth 1mm 0.3/0.5kV Copper PVC/PVC Grey

Description

Flexible Control Cable, 1 mm, Class 5 Annealed Copper, 0.3-0.5 kV, 35 Core + Earth, 1.34 mm Core Diameter, 18.4 mm Overall Diameter, 1 mm Earth Conductor, Static 97 mm Flexible 145 mm Bend Radius, 0.4 mm Insulation Thickness, 19.5 Ohm/km Conductor Resistance, Black/Green/Yellow/White Numerals Core, V-75 PVC Insulation, 4V-75 PVC Sheath, Grey Sheath, Static -25 to 75 deg C Flexible -5 to 70 deg C, IEC 60228 VDE 0245 VDE 0295 VDE0293 AS/NZS 1125 AS/NZS 3808

Key Specifications

SKU	WWC3610
Brand	WWC
Range Name	Conflex
Product Type	Flexible Control Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	3610
Bend Radius	Static 97 mm - Flexible 145 mm
Conductor Resistance	19.5 Ohm/km
Conductor Size	1 mm
Conductor Type	Class 5 Annealed Copper
Core Colours	Black/Green/Yellow/White Numerals
Core Diameter	1.34 mm
Earth Conductor Size	1 mm
Insulation Material	V-75 PVC
Insulation Thickness	0.4 mm
Number of Cores	35 Core + Earth
Overall Diameter	18.4 mm
Sheath Colour	Grey
Sheath Material	4V-75 PVC
Standards	IEC 60228 VDE 0245 VDE 0295 VDE0293 AS/NZS 1125 AS/NZS 3808
Temperature	Static -25 to 75 deg C Flexible -5 to 70 deg C
Voltage	0.3-0.5 kV
