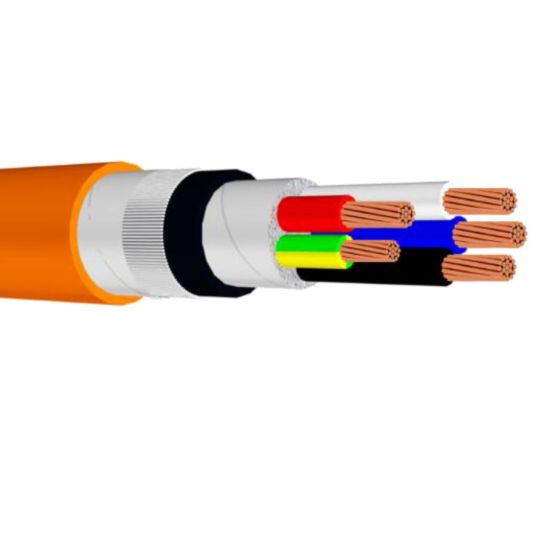

WWC 120 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 1mtr
Loading...
Description
Circular Power Cable, Armoured, 4 Core & Earth, 120 mm, Class 2 Bare Copper, 0.6/1 kV, 15.4 mm Core Diameter, 35 mm Earth Conductor, 41.4 mm Bedding Diameter, 52.4 mm Overall Diameter, Steel Wire Armour, XLPE Insulation, 5V-90 PVC Sheath, Red Black White Blue Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1
Key Specifications
| SKU |
WWC1520
|
|---|---|
| Brand |
WWC
|
| Range Name |
Vipercon
|
| Product Type |
Circular Cable Armoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 1520 |
| Armour Material | Steel Wire |
| Bedding Diameter | 41.4 mm |
| Conductor Type | Class 2 Copper |
| Conductor Size | 120 mm |
| Core Colours | Black/Blue/Red/White/Green/Yellow |
| Core Diameter | 15.4 mm |
| Earth Conductor Size | 35 mm |
| Insulation Material | XLPE |
| Number of Cores | 4 Core + Earth |
| Overall Diameter | 52.4 mm |
| Sheath Colour | Orange |
| Sheath Material | PVC |
| Standards | AS/NZS 5000.1 |
| Voltage | 0.6-1 kV |
