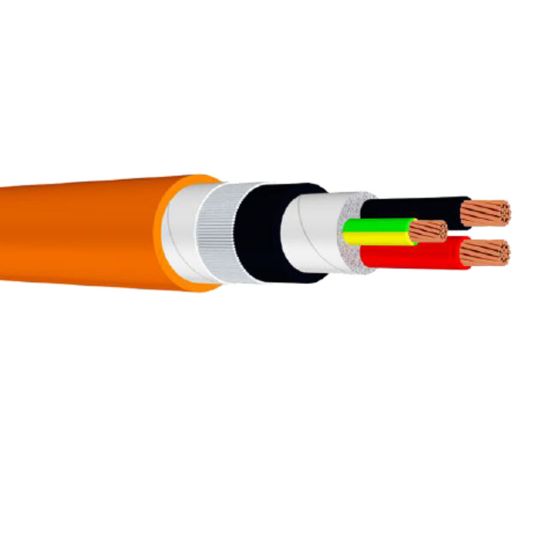

WWC 1.5 mm Orange Circular Cable Armoured V-90 PVC/Galvanised Steel Wire/5V-90 PVC 1mtr

Description

Circular Cable, Armoured, 1.5 mm, Class 2 Annealed Copper, 0.6-1 kV, 2 Core + Earth, 3.2 mm Core Diameter, 1.56 mm Nominal Diameter, 14 mm Overall Diameter, 8.8 mm Bedding Diameter, 10.2 mm Diameter Over Armour, 1.5 mm Earth Conductor, 1 mtr Length, 0.8 mm Insulation Thickness, DC: 13.6 Ohm/km Conductor Resistance, Galvanised Steel Wire Armour, Red/Black/Green/Yellow Core, V-90 PVC Insulation, 5V-90 PVC Sheath, Orange Sheath, -25 to 75 deg C, AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6

Key Specifications

SKU	WWC1301
Brand	WWC
Range Name	Vipercon
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1301
Armour Material	Galvanised Steel Wire
Bedding Diameter	8.8 mm
Conductor Resistance	DC: 13.6 Ohm/km
Conductor Type	Class 2 Annealed Copper
Conductor Size	1.5 mm
Core Colours	Black/Red/Green/Yellow
Core Diameter	3.2 mm
Diameter Over Armour	10.2 mm
Earth Conductor Size	1.5 mm
Insulation Material	V-90 PVC
Insulation Thickness	0.8 mm
Nominal Diameter	1.56 mm
Number of Cores	2 Core + Earth
Overall Diameter	14 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 5000.1 AS/NZS 1660.5.6
Temperature	-25 to 75 deg C
Voltage	0.6-1 kV
