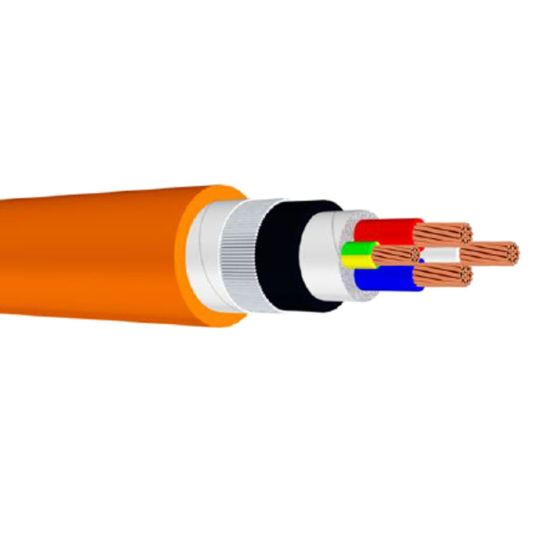

WWC 185 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 1mtr

$WWC\WWC_Circular_Armoured_3C-E.jpg$

Description

Circular Power Cable, Armoured, 3 Core & Earth, 185 mm, Class 2 Bare Copper, 0.6/1 kV, 19.4 mm Core Diameter, 70 mm Earth Conductor, 46.4 mm Bedding Diameter, 57.8 mm Overall Diameter, Steel Wire Armour, XLPE Insulation, 5V-90 PVC Sheath, Red Black White Green/Yellow Cores, Orange Sheath, AS/NZS 5000.1

Key Specifications

SKU	WWC1185
Brand	WWC
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	1185
Bedding Diameter	46.4 mm
Armour Material	Steel Wire
Conductor Size	185 mm
Core Colours	Red/Black/White/Green/Yellow
Conductor Type	Class 2 Copper
Core Diameter	19.4 mm
Earth Conductor Size	70 mm
Insulation Material	XLPE
Number of Cores	3 Core + Earth
Overall Diameter	57.8 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 5000.1
Voltage	0.6-1 kV
