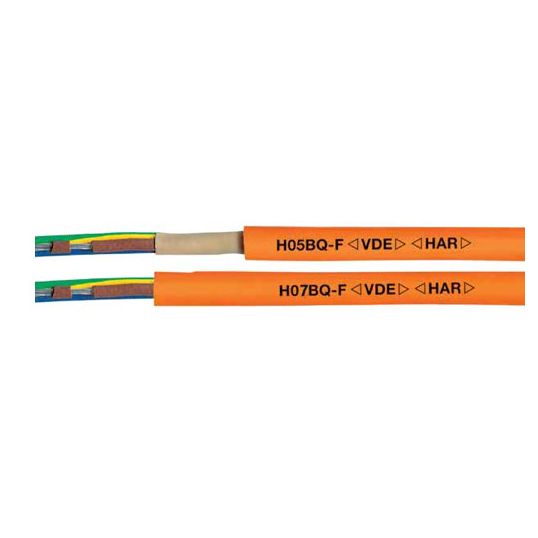

Treotham 1.5mm 4 Core Orange Flexible Cable Heavy Duty Rubber/Polyurethane
Loading...
Description
Flexible Cable, Heavy Duty, 1.5 mm, Class 5 Copper, 450-750 Volt, 4 Core, 9-11.6 mm Overall Diameter, 58 mm Static/145 mm Flexible Bend Radius, Rubber Insulation, Polyurethane Sheath, Orange Sheath, -40 to 90 deg C, VDE 0482-332-1-2/IEC 60332-1
Key Specifications
| SKU |
TRETA50.0015.04
|
|---|---|
| Brand |
Treotham
|
| Range Name |
H07 BQ-F
|
| Product Type |
Flexible Cable Heavy Duty
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | TA50.0015.04 |
| Bend Radius | Static 58 mm - Flexible 145 mm |
| Conductor Size | 1.5 mm |
| Conductor Type | Class 5 Copper |
| Insulation Material | Rubber |
| Number of Cores | 4 Core |
| Overall Diameter | 9-11.6 mm |
| Sheath Colour | Orange |
| Sheath Material | Polyurethane |
| Standards | VDE 0482-332-1-2/IEC 60332-1 |
| Temperature | -40 to 90 deg C |
| Voltage | 450-750 Volt |
