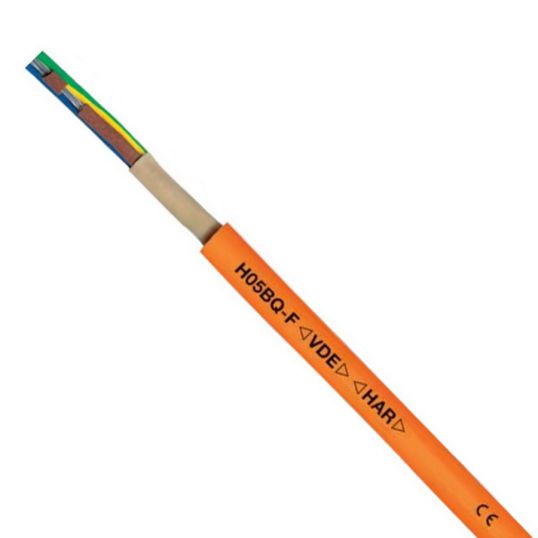

Treotham Treoflex H05 BQ-F Heavy Duty Flexible Cable 4 Core 0.75mm 0.3/0.5kV Bare or Tinned Copper Rubber/PUR Orange

Description

Flexible Cable, Heavy Duty, 4 Core, 0.75 mm, Class 5 Bare or Tinned Copper, 0.3/0.5 kV, 6.8-8.8 mm Overall Diameter, Bend Radius: Static - 44 mm Flexible - 110 mm, Rubber Insulation, Polyurethane Sheath, Orange Sheath, -40 to 90 deg C

Key Specifications

SKU	TRETA50.0007.04
Brand	Treotham
Range Name	HO5 BQ-F
Product Type	Flexible Cable Heavy Duty

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA50.0007.04
Bend Radius	Static: 44 mm - Flexible: 110 mm
Conductor Size	0.75 mm
Conductor Type	Class 5 Copper
Insulation Material	Rubber
Number of Cores	4 Core
Overall Diameter	6.8-8.8 mm
Sheath Colour	Orange
Sheath Material	Polyurethane
Temperature	-40 to 90 deg C
Voltage	0.3-0.5 kV
