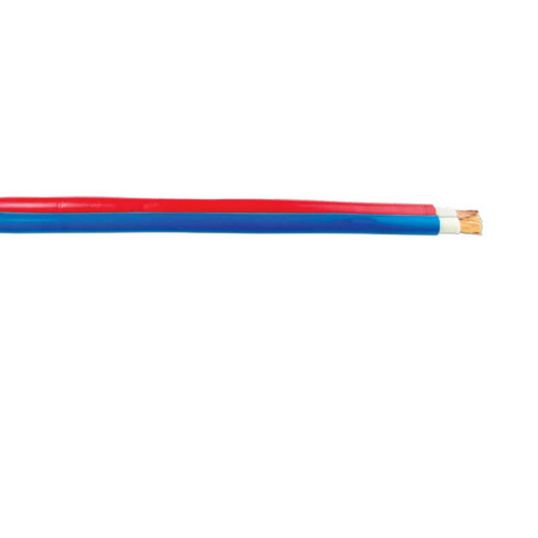

Treotham 6mm 2 Core Blue/Red Flexible Cable Figure 8 Nitril Modified PVC (NBR)/PVC

Description

Flexible Cable, Figure 8, 6 mm, Class 6 Stranded Annealed Copper, 0.6-1 kV, 62 Amp, 2 Core, 190/0.2 mm Strands, 7.3 mm x 14.8 mm Overall Diameter, 74 mm Bend Radius, 0.8 mm Insulation Thickness, 1.1 mm Sheath Thickness, 3.3 Ohm/km Conductor Resistance, Nitril Modified PVC (NBR) Insulation, PVC Sheath, Blue/Red Sheath, Static: -30 to 75 deg C/Flexible: -20 to 75 deg C, AS/NZS 1125 AS/NZS 5000.1 IEC 60332-1

Key Specifications

SKU	TRETA3.0060.02
Brand	Treotham
Product Type	Flexible Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	UV Stabilised Flame Retardant
Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TA3.0060.02
Bend Radius	74 mm
Conductor Resistance	3.3 Ohm/km
Conductor Size	6 mm
Conductor Type	Class 6 Stranded Annealed Copper
Current	62 Amp
Insulation Material	Nitrile Modified PVC (NBR)
Insulation Thickness	0.8 mm
Number of Cores	2 Core
Overall Diameter	7.3 mm x 14.8 mm
Sheath Colour	Blue/Red
Sheath Material	PVC
Sheath Thickness	1.1 mm
Standards	AS/NZS 1125 AS/NZS 5000.1 IEC 60332-1
Temperature	Static -30 to 75 deg C Flexible -20 to 75 deg C
Stranding	190/0.2 mm
Voltage	0.6-1 kV
