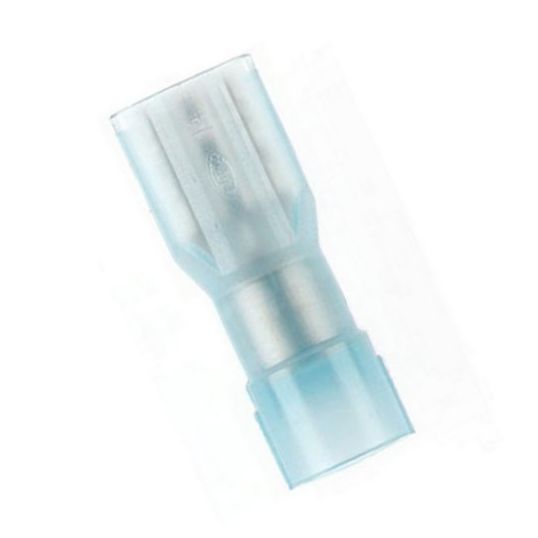

Cabac Quick Connect Female Fully Insulated Double Grip 1-2.6mm 6.4/0.8mm Tab Blue PVC

$Cabac\Cabac_FIQC2_64_DG.jpg$

Description

QC Terminal Female Fully Insulated Double Grip, 1-2.6 mm, 300 Volt, 1.5 kV Min. Breakdown Voltage, 6.4 x 0.8 mm Tab Size, 580 Mpa Tensile Strength, 6% Ductile Rating, Brass/Copper/Zinc, PVC Insulation, Blue Insulation, 100 micro-Ohm Insulation Resistance, Tin Electroplated, -40 to 105 deg C, 50 Pack

Key Specifications

Barcode (EAN-13)	9318674519447
SKU	CAAFIQC2-6.4DG
Brand	Cabac
Range Name	Pre-Insulated Terminals
Product Type	Quick Connect Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	High quality product - meets international standards Reduce installation errors - full insulation Funnel entry design speeds up wire terminating Superior long term electrical integrity
Standard Pack Size	50
UNSPSC Class	39121400
UOM	EA
Vendor Product	FIQC2-6.4DG
Conductive Material	Brass/Copper/Zinc
Conductor Size	1-2.6mm
Ductile Rating	6%
Finish	Tin Electroplated
Insulation Colour	Blue
Insulation Resistance	100 micro-Ohm
Insulation Material	PVC
Min. Breakdown Voltage	1.5 kV
Pack Size	50 Pack
Temperature	-40 to 105 deg C
Tab Size	6.4 x 0.8 mm
Tensile Strength	580 MPa
Voltage Rating	300 Volt
