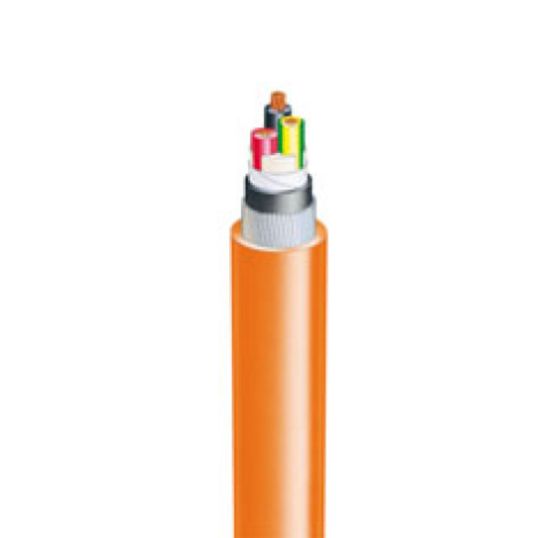

Olex 120 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/PVC 1mtr

$Olex\Olex_FTMP23AA003OMAA.jpg$

Description

Circular Cable, Armoured, 120 mm, Stranded Copper, 0.6-1 kV, 3 Core + Earth, 47.2 mm Overall Diameter, 38.5 mm Bedding Diameter, 42.5 mm Diameter Over Armour, 35 mm Earth Conductor, 1 mtr Length, 570 mm After Installation Bend Radius, 1.2 mm Insulation Thickness, 5.7 kN Pulling Tension, DC: 0.153 Ohm/km AC: 0.196 Ohm/km Conductor Resistance, 300 MOhm/km Insulation Resistance, Steel Wire Armour, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

SKU	OLXFTMP23AA003OMAA
Brand	Olex
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FTMP23AA003OMAA
Bedding Diameter	38.5 mm
Armour Material	Steel Wire
Bend Radius	570 mm After Installation
Conductor Size	120 mm
Conductor Resistance	DC: 0.153 Ohm/km AC: 0.196 Ohm/km
Core Colours	Black/Red/Green/Yellow
Conductor Type	Stranded Copper
Diameter Over Armour	42.5 mm
Earth Conductor Size	35 mm
Insulation Material	X-90 XLPE
Insulation Resistance	300 MOhm/km
Insulation Thickness	1.2 mm
Number of Cores	3 Core + Earth
Overall Diameter	47.2 mm
Pulling Tension	5.7 kN
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 1125 AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
