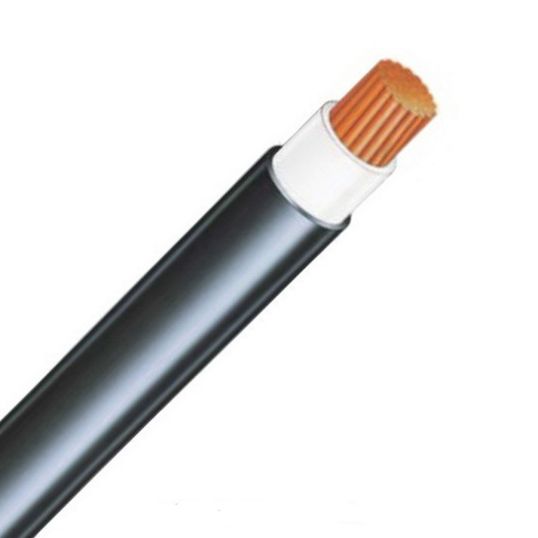

Olex 150mm SDI Cable Welding 1mtr
Loading...
Description
SDI Cable Welding, 150 mm, Stranded Copper, 0.6-1 kV, 1 Core, 22.5 mm Overall Diameter, 1 mtr Length, 140 mm Bend Radius, 1.4 mm Insulation Thickness, 1.6 mm Sheath Thickness, DC: 0.129 Ohm/km AC: 0.176 Ohm/km Conductor Resistance, 200 MOhm/km Insulation Resistance, X-HF-110 Insulation, HFS-110-TP Sheath, Black Sheath, 110 deg C, AS/NZS 5000.1
Key Specifications
| SKU |
OLXBZHE88AA001CXNA
|
|---|---|
| Brand |
Olex
|
| Product Type |
SDI Cable Welding
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | BZHE88AA001CXNA |
| Bend Radius | 140 mm |
| Conductor Resistance | DC: 0.129 Ohm/km AC: 0.176 Ohm/km |
| Conductor Size | 150 mm |
| Conductor Type | Stranded Copper |
| Insulation Material | X-HF-110 |
| Insulation Resistance | 200 MOhm/km |
| Insulation Thickness | 1.4 mm |
| Number of Cores | 1 Core |
| Overall Diameter | 22.5 mm |
| Sheath Colour | Black |
| Sheath Material | HFS-110-TP |
| Sheath Thickness | 1.6 mm |
| Standards | AS/NZS 5000.1 |
| Temperature | 110 deg C |
| Voltage | 0.6-1 kV |
