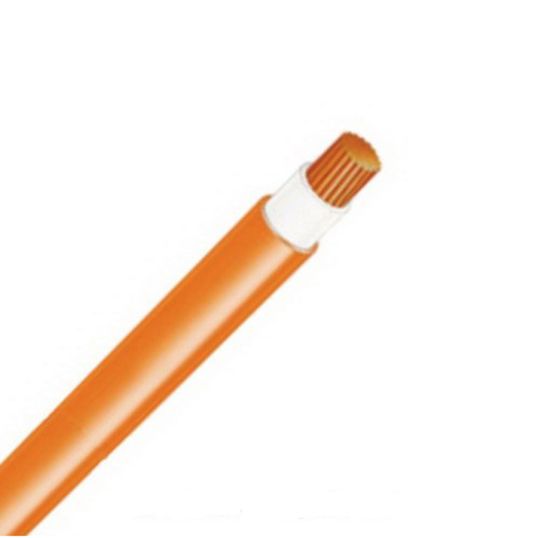

Olex 25mm SDI Cable Welding 1mtr
Loading...
Description
Flexible Welding Cable, Double Insulated 1 Core, 25 mm, Stranded Copper, 0.6/1 kV, 0.21 mm Strands, 11.3 mm Overall Diameter, 67.8 mm Bend Radius, Conductor Resistance: DC - 0.78 Ohm/km AC - 0.995 Ohm/km, Insulation Resistance: 320 MOhm/km, X-90 XLPE Insulation, TPE Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1
Key Specifications
| Barcode (EAN-13) |
99319215302781
|
|---|---|
| SKU |
OLXBDSX03C01OR
|
| Brand |
Olex
|
| Range Name |
Versolex
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | BDSX03AA001OMNA |
