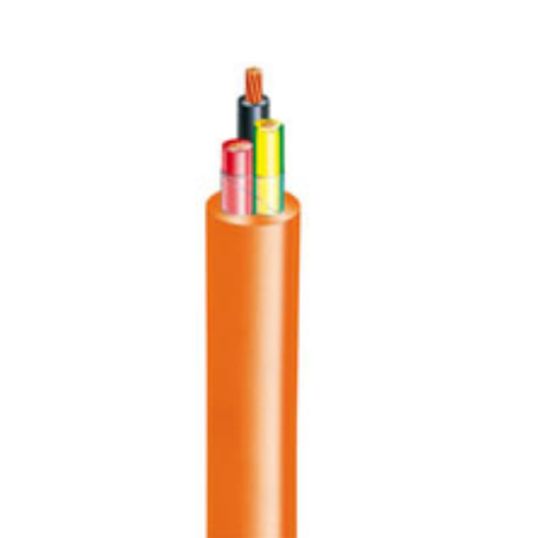

Olex 4mm Orange Circular Cable Unarmoured PVC/PVC 500mtr

$Olex\Olex_ENHP09A5003OMAA.jpg$

Description

Circular Power Cable, Unarmoured, 3 Core & Earth, 4mm, Stranded Copper, 450/750 Volt, 7/0.85mm Strands, 2.5mm Earth Conductor, 12.5mm Overall Diameter, 0.8mm Insulation Thickness, 1.3mm Sheath Thickness, Conductor Resistance: DC - 4.61 Ohm/km AC - 5.61 Ohm/km, Insulation Resistance; 12 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red White Blue Green/Yellow Cores, Orange Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000, AS/NZS 5000.1, AS/NZS 5000.2

Key Specifications

SKU	OLX7/085-3ECA5
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	500
UNSPSC Class	26121600
UOM	MTR
Vendor Product	ENHP09A5003OMAA
Conductor Resistance	DC: 4.61 Ohm/km - AC: 5.61 Ohm/km
Conductor Size	4 mm
Core Colours	Red/Blue/White/Green/Yellow
Conductor Type	Stranded Copper
Earth Conductor Size	2.5 mm
Insulation Resistance	12 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.8 mm
Number of Cores	3 Core + Earth
Overall Diameter	12.5 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.3 mm
Standards	AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2
Stranding	7/0.85 mm
Temperature	90 deg C
Voltage	450-750 Volt
