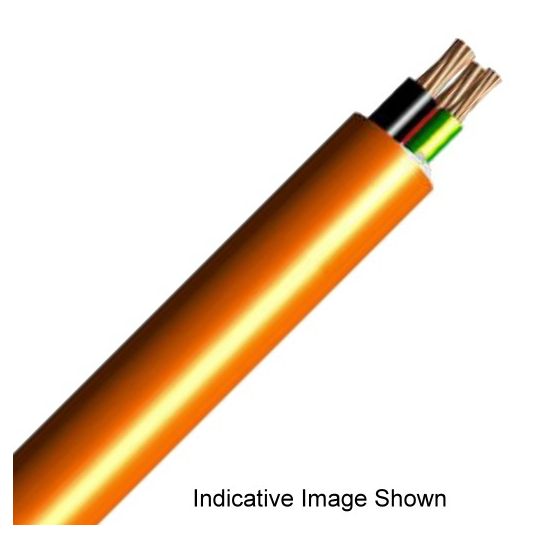

Olex 4mm Orange Circular Cable Unarmoured V-90 PVC/PVC 1mtr

$Olex\Olex_Circular_Unarmoured_2C-E.jpg$

Description

Circular Cable Unarmoured, 4mm, Stranded Copper, 0.6-1 kV, 3 Core + Earth, 7/0.85mm Strands, 14.1mm Overall Diameter, 2.5mm Earth Conductor, 1 mtr Length, 56mm Bend Radius, 1mm Insulation Thickness, 1.8mm Sheath Thickness, AC: 5.61 Ohm/km Conductor Resistance, 14 MOhm/km Insulation Resistance, Red/Black/White/Green/Yellow Core, V-90 PVC Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2

Key Specifications

SKU	OLX7/085-3EC.6/1KV
Brand	Olex
Product Type	Circular Cable Unarmoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	26121600
UOM	MTR
Vendor Product	FNHP09AA003OMAA
Conductor Resistance	AC: 5.61 Ohm/km
Bend Radius	56 mm
Conductor Size	4 mm
Core Colours	Black/Red/White/Green/Yellow
Conductor Type	Stranded Copper
Earth Conductor Size	2.5 mm
Insulation Resistance	14 MOhm/km
Insulation Material	V-90 PVC
Insulation Thickness	1 mm
Number of Cores	3 Core + Earth
Overall Diameter	14.1 mm
Sheath Colour	Orange
Sheath Material	PVC
Sheath Thickness	1.8 mm
Standards	AS/NZS 1125 AS/NZS 5000 AS/NZS 5000.1 AS/NZS 5000.2
Stranding	7/0.85 mm
Temperature	90 deg C
Voltage	0.6-1 kV
