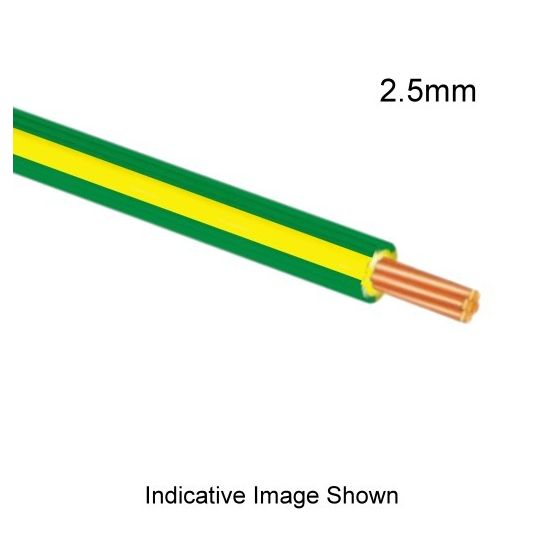

Building Wire 1 Core 2.5mm V-90 PVC Green/Yellow 0.6/1kV

Olex 2.5mm Building Wire Green/Yellow 1mtr

PRODUCT CODE:
OLX7/067EWA1
Std Pack Size
1
OUR P/N:
OLX7/067EWA1

You need to be registered and logged in to view product details and pricing

Building Wire, Single Insulated, 1 Core, 2.5 mm, Stranded Copper, 0.6/1 kV, 7/0.7 mm Strands, 3.4 mm Overall Diameter, 0.7 mm Insulation Thickness, Conductor Resistance: DC - 7.41 Ohm/km AC - 9.01 Ohm/km, Insulation Resistance: 10 MOhm/km, V-90 PVC Insulation, Unsheathed, Green/Yellow Insulation, 90 deg C, AS/NZS 1125, AS/NZS 5000.1

Additional Information

Additional Information
Brand Olex
Standard Pack Size 1
UNSPSC Class 26121500
UOM MTR
Vendor Product AATP07A1001AAHN
Conductor Type Stranded Copper
Conductor Resistance DC: 7.41 Ohm/km AC: 9.01 Ohm/km
Insulation Colour Green/Yellow
Insulation Resistance 10 MOhm/km
Insulation Thickness 0.7 mm
Insulation Material V-90 PVC
Overall Diameter 3.4 mm
Product Type Building Wire
Stranding 7/0.7 mm
Standards AS/NZS 1125 AS/NZS 5000.1
Temperature 90 deg C
Voltage 0.6-1 kV
Conductor Size 2.5 mm
