Olex 1mm Flat TPS Cable Red/White 100mtr

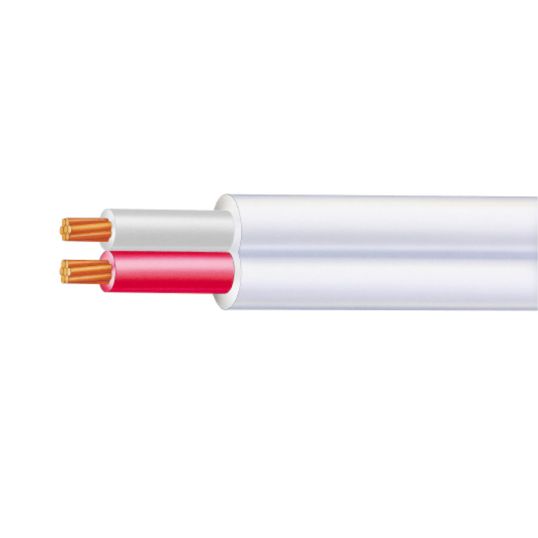

$Olex\Olex_CACP02A1002WVAB.jpg$

Description

Flat TPS Cable, 1 mm, Copper, 450-750 Volt, 2 Core, 1/1.13 mm Strands, 6.5 mm x 4.2 mm Overall Diameter, 100 mtr Length, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, DC: 18.1 Ohm/km AC: 25.8 Ohm/km Conductor Resistance, 17 MOhm/km Insulation Resistance, Red/White Core, V-90 PVC Insulation, PVC Sheath, White Sheath, 90 deg C, AS/NZS 1125 AS/NZS 5000.2

Key Specifications

Barcode (EAN-13)	9322576247780
SKU	OLX1/113-2RWA1
Brand	Olex
Product Type	Flat TPS Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	CACP02A1002WVAB
Conductor Resistance	DC: 18.1 Ohm/km - AC: 25.8 Ohm/km
Conductor Size	1 mm
Conductor Type	Copper
Core Colours	Red/White
Insulation Material	V-90 PVC
Insulation Resistance	17 MOhm/km
Insulation Thickness	0.6 mm
Number of Cores	2 Core
Overall Diameter	6.5 mm x 4.2 mm
Sheath Colour	White
Sheath Material	PVC
Sheath Thickness	0.9 mm
Standards	AS/NZS 1125 AS/NZS 5000.2
Temperature	90 deg C
Stranding	1/1.13 mm
Voltage	450-750 Volt
