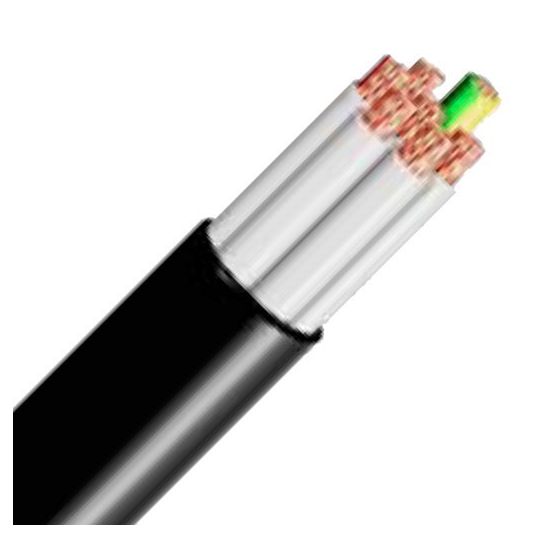

Prysmian 2.5 mm Black Circular Control Cable Unarmoured PVC/PVC 100mtr
Loading...
Description
Circular Control Cable, Unarmoured, 6 Core & Earth, 2.5 mm, Plain Annealed Copper, 0.6/1 kV, 15.2 mm Overall Diameter, 0.8 mm Insulation Thickness, Conductor Resistance: DC: 7.41 Ohm/km, PVC Insulation, PVC Sheath, Numbered Core, Black Sheath
Key Specifications
| Barcode (EAN-13) |
9310835049930
|
|---|---|
| SKU |
MMCCEB06PJPWB7/0.67
|
| Brand |
Prysmian
|
| Product Type |
Circular Control Unarmoured
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 100 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | 20199908 |
| Conductor Resistance | DC: 7.41 Ohm/km |
| Conductor Size | 2.5 mm |
| Conductor Type | Annealed Copper |
| Core Colours | Numerals |
| Insulation Material | PVC |
| Insulation Thickness | 0.8 mm |
| Number of Cores | 6 Core + Earth |
| Overall Diameter | 15.2 mm |
| Sheath Colour | Black |
| Sheath Material | PVC |
| Voltage | 0.6-1 kV |
