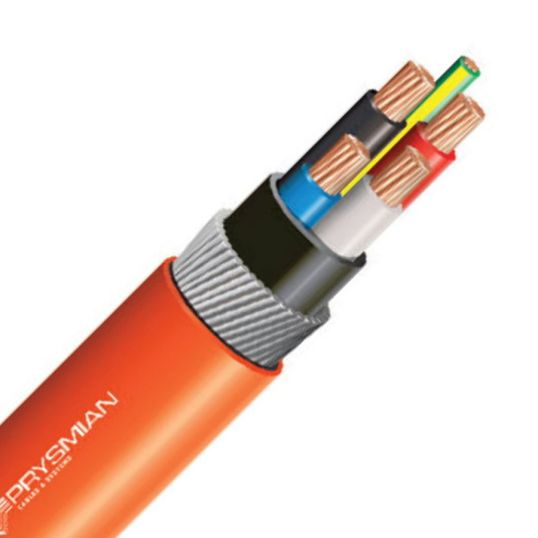

Prysmian 70 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 100mtr

$Prysmian\Prysmian_Circular_Armoured_4C-E.jpg$

Description

Circular Cable, Armoured, 70 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 44.1 mm Overall Diameter, 35.7 mm Bedding Diameter, 39.6 mm Diameter Over Armour, 100 mtr Length, 530 mm Bend Radius, Steel Wire Armour, Red/Black/White/Blue/Green Core, XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835056440
SKU	MMCCEB04XNPLG19/2.14
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199744
Bedding Diameter	35.7 mm
Armour Material	Steel Wire
Bend Radius	530 mm
Conductor Size	70 mm
Core Colours	Black/Blue/Red/White/Green
Conductor Type	Annealed Copper
Diameter Over Armour	39.6 mm
Insulation Material	XLPE
Number of Cores	4 Core + Earth
Overall Diameter	44.1 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
