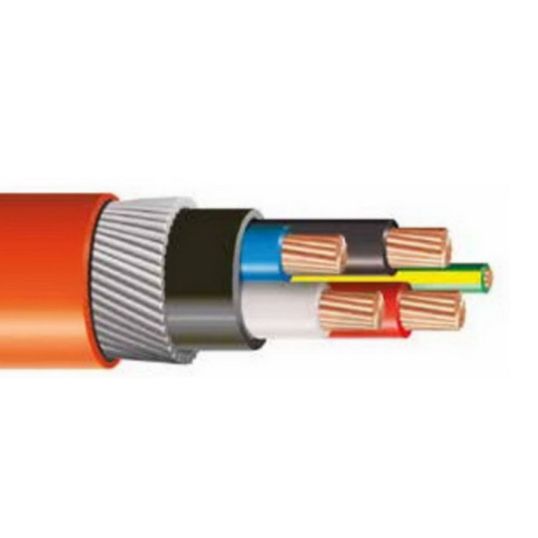

Prysmian 25 mm Orange Circular Cable Armoured XLPE/Steel Wire/PVC 100mtr

Description

Circular Cable, Armoured, 25 mm, Annealed Copper, 0.6-1 kV, 4 Core + Earth, 30.6 mm Overall Diameter, 23.8 mm Bedding Diameter, 27 mm Diameter Over Armour, 100 mtr Length, 370 mm Bend Radius, Steel Wire Armour, Red/Black/White/Blue/Green Core, XLPE Insulation, PVC Sheath, Orange Sheath, 90 deg C, AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835056419
SKU	MMCCEB04XNPLG19/1.35
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199727
Armour Material	Steel Wire
Bedding Diameter	23.8 mm
Bend Radius	370 mm
Conductor Type	Annealed Copper
Conductor Size	25 mm
Core Colours	Black/Blue/Red/White/Green
Diameter Over Armour	27 mm
Insulation Material	XLPE
Number of Cores	4 Core + Earth
Overall Diameter	30.6 mm
Sheath Colour	Orange
Sheath Material	PVC
Standards	AS/NZS 5000.1
Temperature	90 deg C
Voltage	0.6-1 kV
