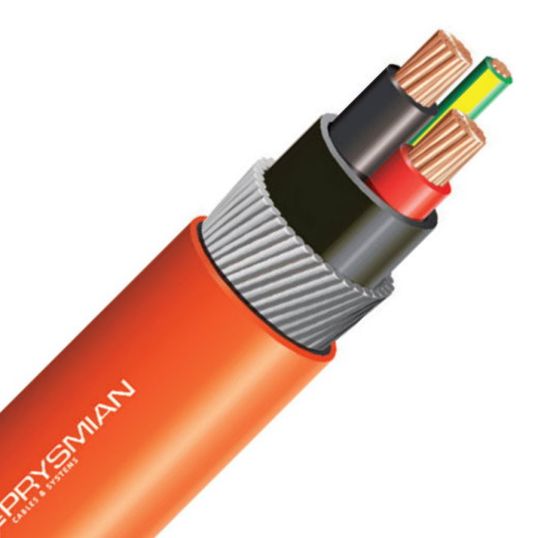

Prysmian 16 mm Orange Circular Cable Armoured X-90 XLPE/Steel Wire/5V-90 PVC 100mtr


Description

Circular Cable, Armoured, 16 mm, Annealed Copper, 0.6-1 kV, 2 Core + Earth, 7/1.7 mm Strands, 5.1 mm Nominal Diameter, 22.7-24 mm Overall Diameter, 17.6 mm Bedding Diameter, 19.1-20.1 mm Diameter Over Armour, 6 mm Earth Conductor, 100 mtr Length, 290 mm Bend Radius, 1 mm Insulation Thickness, DC: 1.15 Ohm/km Conductor Resistance, Steel Wire Armour, Red/Black/Green/Yellow Core, X-90 XLPE Insulation, 5V-90 PVC Sheath, Orange Sheath, 75 deg C, AS/NZS 1125 AS/NZS 5000.1

Key Specifications

Barcode (EAN-13)	9310835914627
SKU	MMCCEB02PNPMG7/1.70
Brand	Prysmian
Product Type	Circular Cable Armoured

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20199595
Armour Material	Steel Wire
Bedding Diameter	17.6 mm
Bend Radius	290 mm
Conductor Resistance	DC: 1.15 Ohm/km
Conductor Type	Annealed Copper
Conductor Size	16 mm
Core Colours	Black/Red/Green/Yellow
Diameter Over Armour	19.1-20.1 mm
Earth Conductor Size	6 mm
Insulation Material	X-90 XLPE
Insulation Thickness	1 mm
Nominal Diameter	5.1 mm
Number of Cores	2 Core + Earth
Overall Diameter	22.7-24 mm
Sheath Colour	Orange
Sheath Material	5V-90 PVC
Standards	AS/NZS 1125 AS/NZS 5000.1
Stranding	7/1.7 mm
Temperature	75 deg C
Voltage	0.6-1 kV
