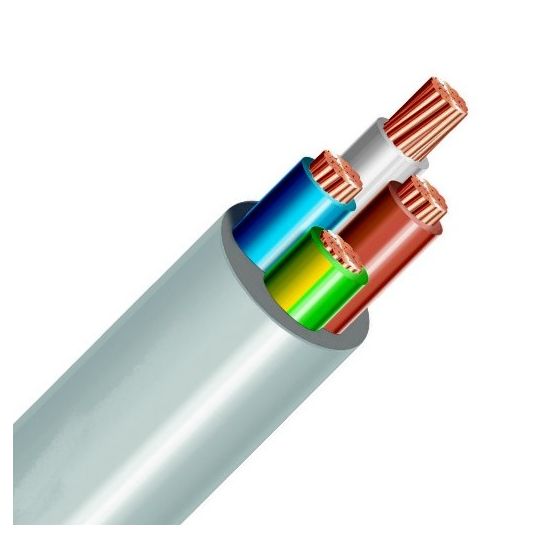

Prysmian Ordinary Duty Flexible Cable 4 Core 1.5mm 250/440V Copper PVC/PVC White

Description

Flexible Cable, Ordinary Duty, 4 Core, 1.5 mm, Class 5 Stranded Copper, 250/440 Volt, 9.5 mm Overall Diameter, 38 mm Bend Radius, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Light Blue White Green/Yellow Cores, White Sheath, Static - 90 deg C Flexible - 60 deg C, AS/NZS 3191

Key Specifications

Barcode (EAN-13)	9310835926835
SKU	MMC1.54CODFXWH
Brand	Prysmian
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	20269968
Bend Radius	38 mm
Conductor Size	1.5 mm
Conductor Type	Class 5 Stranded Copper
Core Colours	Brown/Blue/White/Green/Yellow
Insulation Material	V-90 PVC
Number of Cores	4 Core
Overall Diameter	9.5 mm
Sheath Colour	White
Sheath Material	5V-90 PVC
Standards	AS/NZS 3191
Temperature	Static: 90 deg C Flexible: 60 deg C
Voltage	250-440 Volt
