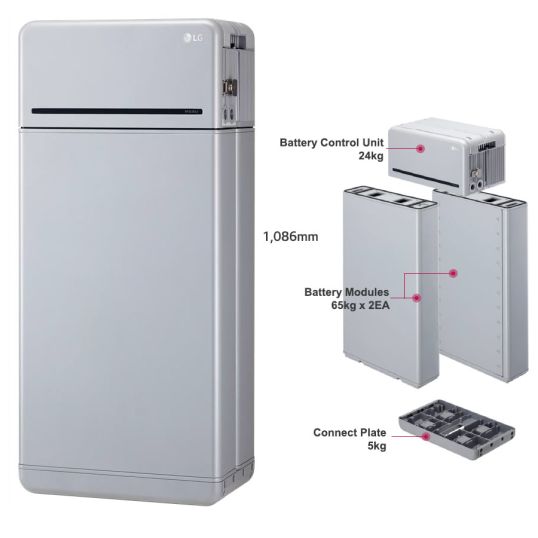

LG RESU Solar Battery Pack 16kWh 20A 2xConduit Glands Required

$LG_Chem\LG_Chem_RESU16H-PRIME.jpg$

Description

Solar Battery Pack, 16 kWh at 25 deg C DC Input, Charge: 420-450 Volt DC, Discharge: 350-410 Volt DC DC Input, 20 Amp DC Max. Input, 2000 mtr Max. Altitude, Lithium-Ion, RS485, CAN Communication Port, Natural Convection Cooling, Spring Type Connector Connection, Stand Only Mounting, IP55, 15 to 30 deg C, 5-95% Relative Humidity, 1086 mm Height, 504 mm Width, 295 mm Depth, 159 kg, UL1642, UL1973/CE/RCM/IEC 62619, FCC, Class 9, UN38.3 (UNDOT)

Key Specifications

SKU	LGHRESU16H-PRIME
Brand	LG Energy Solutions
Range Name	Resu
Product Type	Batteries

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Continuos power, DC Round-Trip Efficiency Ease of Installation - Inside and Outdoor Rated Wall or Ground Mountable App/Web Based Monitoring for full battery usage visibility
Standard Pack Size	1
UNSPSC Class	26111600
UOM	EA
Vendor Product	RESU16H-PRIME
Battery	Lithium-Ion
Cooling Method	Natural Convection
Connection Type	Spring Type Connector
Communication Port	RS485/CAN
DC Input Power	16 kWh at 25 deg C
DC Max. Input Current	20 Amp
DC Input Voltage	Charge: 420-450 Volt DC Discharge: 350-410 Volt DC
Depth	295 mm
IP Rating	IP55
Height	1086 mm
Max. Operating Altitude	2000 mtr
Mounting Method	Stand Only
Operating Temperature	15 to 30 deg C
Relative Humidity	5-95%
Width	504 mm
