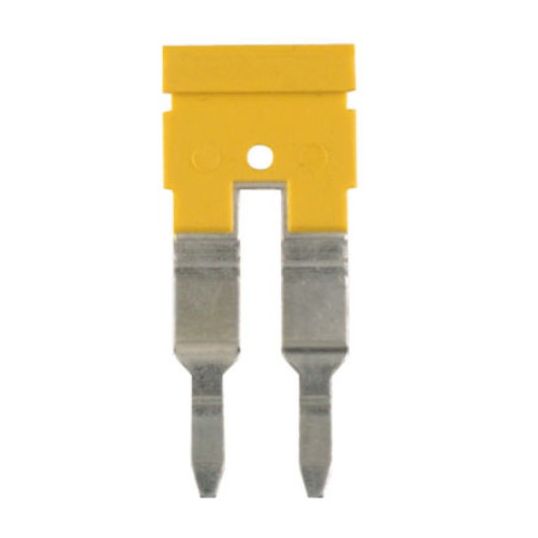

Weidmuller Klippon Rail Terminal Cross-Connector 2 Pole Yellow For ZQV4 Terminals 6.1mm Pitch
Loading...
Description
Rail Terminal Cross-Connector, For ZQV4 Terminals, Pitch/TPI: 6.1 mm, 32 Amp, Number of Poles: 2, Direct Mount, Wemid, Yellow, Height: 25.7 mm, 11 mm Width, 2.8 mm Depth, Flammability: UL94 V-0, -60 to 130 deg C, 60 Pack
Key Specifications
| SKU |
KLI1758250000
|
|---|---|
| Brand |
Weidmuller
|
| Product Type |
Rail Terminal Accessories
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 60 |
|---|---|
| UNSPSC Class | 39121400 |
| UOM | EA |
| Vendor Product | 1758250000-NLA |
| Colour | Yellow |
| Current Rating | 32 Amp |
| Depth | 2.8 mm |
| Flammability | UL94 V-0 |
| For Use With | ZQV4 Terminals |
| Height | 25.7 mm |
| Material | Wemid |
| Mounting Method | Direct Attachment |
| Number Of Poles | 2 Pole |
| Pack Size | 60 Pack |
| Pitch-TPI | 6.1 mm |
| Temperature | -60 to 130 deg C |
| Width | 11 mm |
