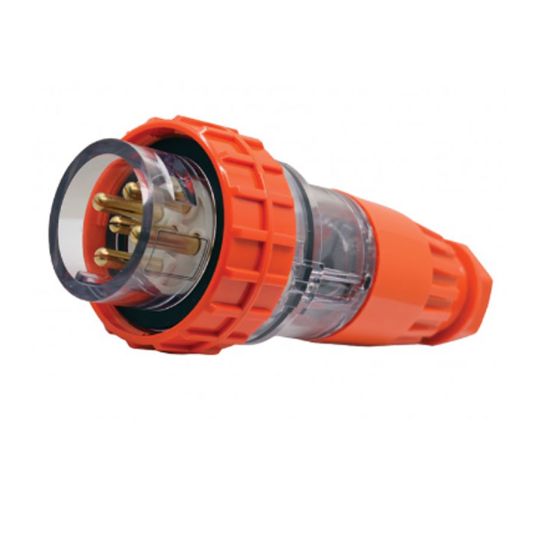

GSME Trader Buffalo Straight Plug 40A 500V 5 Round Pin IP66

$GSME\GSME_BUP540.jpg$

Description

Plug Straight, 500 Volt, 40 Amp AC1, Straight Angle, 3 Phase Phase, 5 Pin Round, 4.1 mm Diameter Terminal Capacity, M32 x 1.5 mm Cable Gland Size, 11-25 mm Cable Nominal Diameter, IP66, 44 mm Height, 79.8 mm Width, 178 mm Depth

Key Specifications

Barcode (EAN-13)	9349703031104
SKU	GSMBUP540
Brand	GSME Trader
Range Name	Buffalo
Product Type	Plugs Straight

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Straight body format providing a more traditional design Ribbed lock ring for secure fitment and gripping with gloved hands Rear cord entry and cable gland ensuring IP66 rating Insulated pins in accordance to AS/NZS3112 (BUP310, BUP315, BUP310L, BUP320F) Internal cable clamp to support electrical connections
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BUP540
Angle	Straight
Cable Gland Size	M32 x 1.5 mm
Cable Nominal Diameter	11-25 mm
Height	44 mm
Depth	178 mm
Current	40 Amp AC1
IP Rating	IP66
Phase	3 Phase
Pin Configuration	5 Pin Round
Width	79.8 mm
Terminal Capacity	4.1 mm Diameter
Voltage	500 Volt
