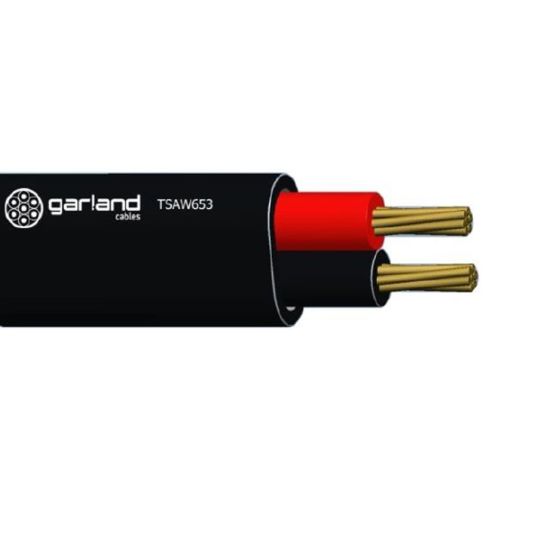

Garland 4.6mm 2 Core Black Figure 8 Speaker Cable PVC/PVC

Description

Speaker Cable, Figure 8, 4.6 mm, Annealed Copper, 240 Volt, 2 Core, 65/0.3 mm Strands, 5.8 mm x 9.9 mm Overall Diameter, 58 mm Static Bend Radius, 0.7 mm Insulation Thickness, 0.6 mm Sheath Thickness, Insulation: >100% Outer Sheath: >100% Elongation, 643 N Pulling Tension, Before Aging: >12 MPa Tensile Strength, DC: 4.3 Ohm/km Conductor Resistance, 50 MOhm/km Insulation Resistance, Red/Black Core, PVC Insulation, PVC Sheath, Black Sheath, -15 to 70 deg C, AS/NZS 1125 AS/NZS 3808

Key Specifications

Barcode (EAN-13)	9329849000752
SKU	GARTSAW653100
Brand	Garland
Product Type	Speaker Cable Figure 8

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	TSAW653100
Bend Radius	Static 58 mm
Conductor Resistance	DC: 4.3 Ohm/km
Conductor Size	4.6 mm
Conductor Type	Annealed Copper
Core Colours	Red/Black
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Resistance	50 MOhm/km
Insulation Material	PVC
Insulation Thickness	0.7 mm
Number of Cores	2 Core
Overall Diameter	5.8 mm x 9.9 mm
Pulling Tension	643 N
Sheath Colour	Black
Sheath Material	PVC
Sheath Thickness	0.6 mm
Temperature	-15 to 70 deg C
Standards	AS/NZS 1125 AS/NZS 3808
Stranding	65/0.3 mm
Tensile Strength	Before Aging: >12 MPa
Voltage	240 Volt
