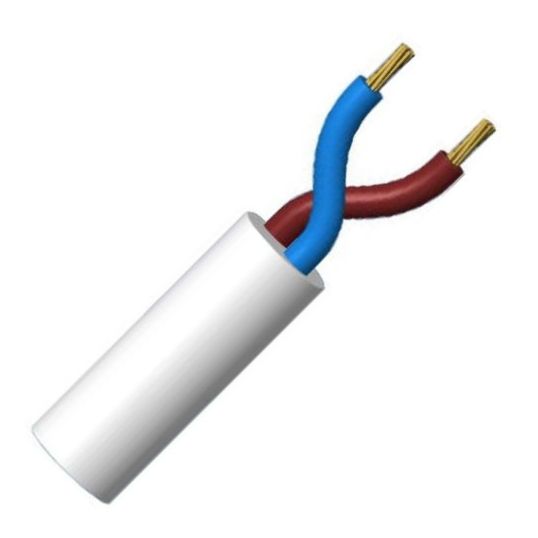

Garland Pro Series Ordinary Duty Flexible Cable 2 Core 0.75mm 250/440V Plain Annealed Copper PVC/PVC White

Description

Flexible Cable, Ordinary Duty, 2 Core, 0.75 mm, Plain Annealed Copper, 250/440 Volt, 24/0.2 mm Strands, Static - 65 mm, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, Elongation: Insulation - >100% Outer Sheath - >100%, Tensile Strength: Before Aging - >12 MPa, Conductor Resistance: DC - 26 Ohm/km, V-90 PVC Insulation, 5V-90 PVC Sheath, Brown Blue Cores, White Sheath, -15 to 90 deg C, AS/NZS 1125, AS/NZS 3808, AS/NZS 3191

Key Specifications

SKU	GAROD224WH
Brand	Garland
Product Type	Flexible Cable

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	100
UNSPSC Class	26121600
UOM	MTR
Vendor Product	OD224WH
Bend Radius	Static: 65 mm
Conductor Resistance	26 Ohm/km
Conductor Size	0.75 mm
Conductor Type	Annealed Copper
Core Colours	Brown/Blue
Elongation	Insulation: >100% Outer Sheath: >100%
Insulation Material	V-90 PVC
Insulation Thickness	0.6 mm
Number of Cores	2 Core
Sheath Colour	White
Sheath Material	5V-90 PVC
Sheath Thickness	0.9 mm
Standards	AS/NZS 1125 AS/NZS 3808 AS/NZS 3191
Temperature	-15 to 90 deg C
Stranding	24/0.2 mm
Tensile Strength	Before Aging: >12 MPa
Voltage	250-440 Volt
